75mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch

500
MOQ
5.23
Price
75mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Industrial PU Caster Wheel
Wheel Material: Polyurethane Tread + Polypropylene Core
Wheel Diameter: 75 Mm / 100 Mm / 125 Mm / 160mm
Tread Width: 25mm / 30mm / 37mm / 40mm / 50mm
Load Height: 95mm / 125mm / 153mm / 195mm / 240mm
Plate Size: 81x65mm / 100x80mm / 100x80mm / 130x103mm / 130x103mm
Hole Spacing: 60x45mm / 80x60mm / 80x60mm / 105x75mm / 105x75mm
Hole Size: 8.5mm / 8.5mm / 8.5mm / 12.5mm / 12.5mm
Thread Size: M12 × 30 Mm
Load Capacity: 50kg / 70kg / 80kg / 120kg / 130kg Per Wheel
Installation: Top-plate Mount
Highlight:

125mm Castor Wheels Industrial

,

125mm Caster Wheels Industrial

,

PU Caster Wheel 3 inch
Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description
Industrial PU Caster Wheel

Features

  1. Bracket made of cold-rolled steel with galvanized finish for superior rust resistance and durability
  2. Wheel crafted from high-elasticity synthetic rubber (PU), ensuring excellent shock absorption and quiet operation
  3. Double ball bearing design for smooth and flexible rotation
  4. Non-marking, wear-resistant wheel that protects flooring

Function

  • Provides stable, silent, and effortless movement for various equipment
  • Reduces vibration and noise, improving the working environment
  • Ensures long service life even under frequent use and heavy loads

Application

  1. Perfect for refrigerator and freezer cabinets
  2. Suitable for platform carts and trolleys
  3. Ideal for industrial racks, shelves, and other mobile equipment


Technical Parameters



Standard Size Material Wheel Diameter Wheel Width Installation Height Plate Size Bolt Hole Spacing Bolt Hole Diameter Load Capacity
3 inch PP / PU / Elastic rubber 75mm 25mm 95mm 81×65mm 60×45mm 8.5mm 50kg
4 inch 100mm 30mm 125mm 100×80mm 80×60mm 8.5mm 70kg
5 inch 125mm 37mm 153mm 100×80mm 80×60mm 8.5mm 80kg
6 inch 160mm 40mm 195mm 130×103mm 105×75mm 12.5mm 120kg
8 inch 200mm 50mm 240mm 130×103mm 105×75mm 12.5mm 130kg



Product

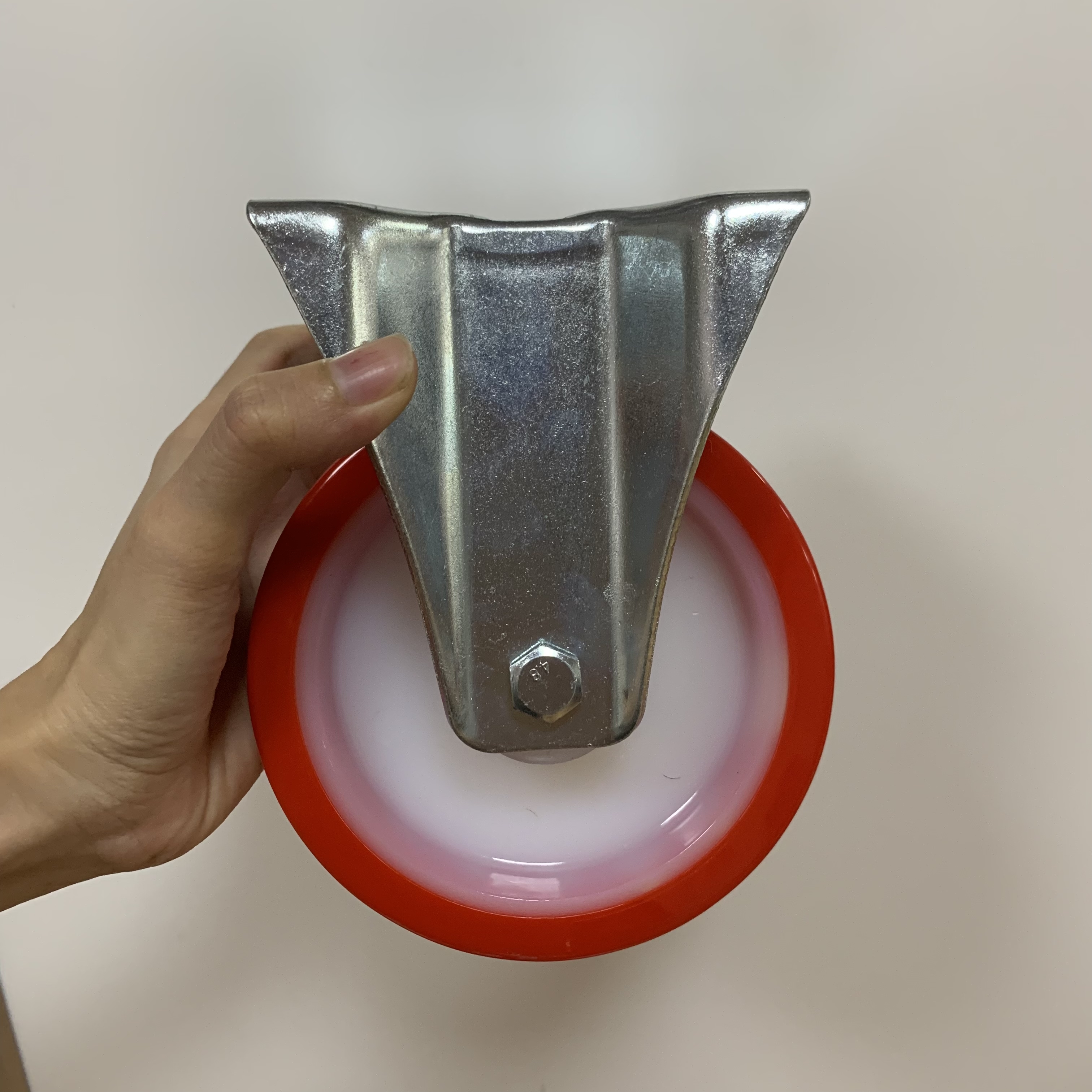

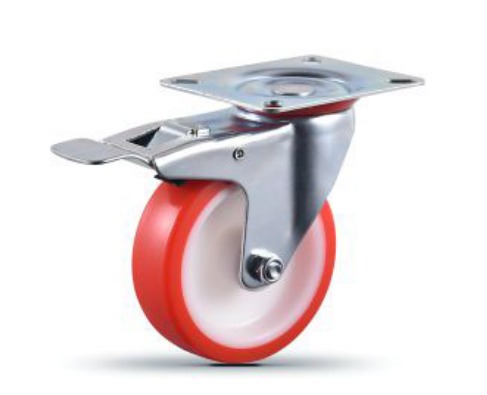

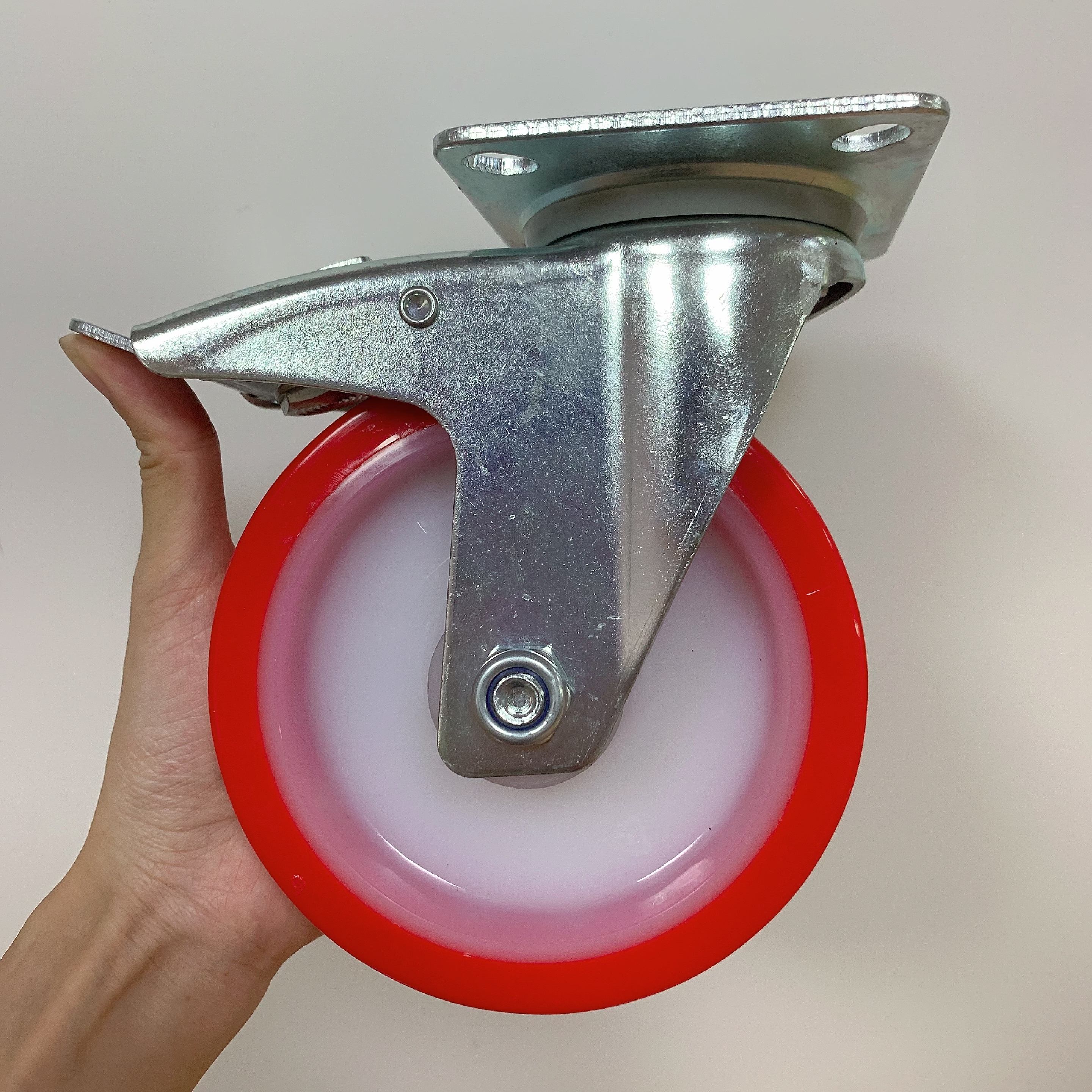

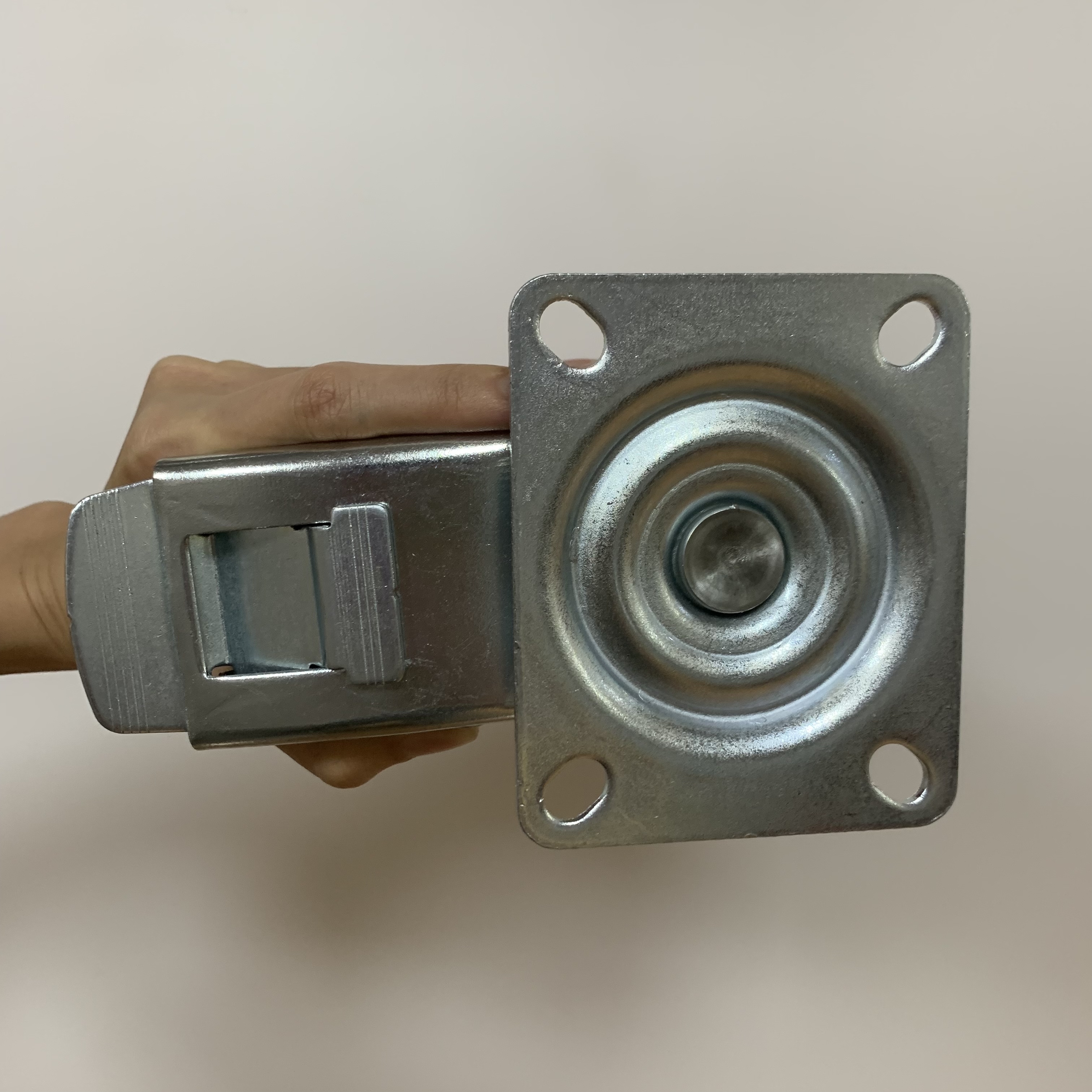

75mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch 075mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch 1



Factory Shows

75mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch 2

75mm 100mm 125mm Caster Wheels Industrial PU Caster Wheel 3 inch 4 inch 3
