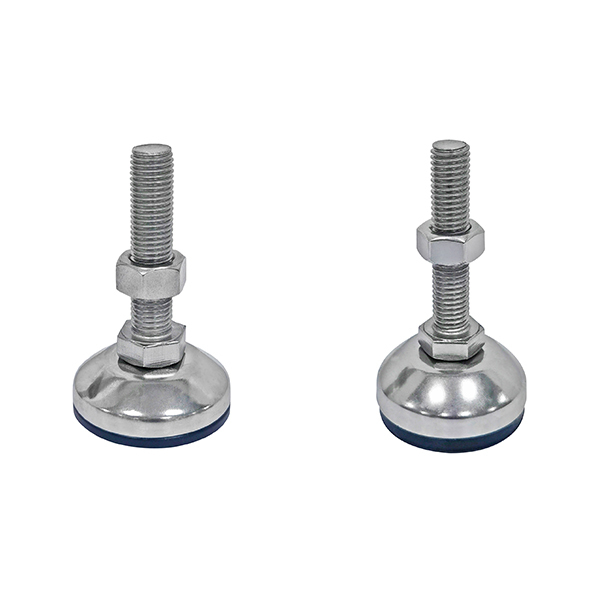

Stainless Steel Adjustable Feet

500
MOQ
2.78
Price
Stainless Steel Adjustable Feet
Features Gallery Product Description Request A Quote
Features
Specifications
Model: JB-50 / JB-60 / JB-80 / JB-100
Material: SUS 304
Suitable Wheel Diameter (mm): 50/60/80/100
Plate Size: 54×70 Mm
Thread Diameter (mm): M10 / M12 / M14 / M16 / M20
Screw Height (mm): 50/80/100/150
Installation Height (mm): 100/120/150
Load Capacity (kg): 200/250/300/500
Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description
Stainless Steel Adjustable Feet

Features


This medium-duty caster features a 304 stainless steel frame for superior corrosion resistance, making it ideal for food service, medical, and industrial applications. The TPR wheel provides excellent durability and load-bearing capacity (up to 150kg per caster), while the double ball bearing system ensures smooth and effortless 360° rotation. With a compact 50mm diameter × 28mm width wheel, it maintains a low 72mm installation height for easy integration into carts and equipment. The 54×70mm mounting plate offers multiple hole spacing options (36×54mm / 35×48.5mm / 35×54.5mm) and 7/8.5mm bolt holes for flexible installation. The 80mm rotational radius enhances maneuverability in tight spaces, and the stainless steel + PA construction ensures resistance to chemicals, moisture, and frequent cleaning.


Function

Stainless steel leveling feet are designed to provide stable, adjustable support for equipment and furniture. They help maintain balance, reduce vibration, and prevent sliding, ensuring the safe and efficient operation of your machinery or workstations.


Application

  • Food Processing Equipment
  • Medical and Laboratory Devices
  • Industrial Machinery
  • Commercial Kitchen Appliances
  • Retail and Display Stands
  • Office and Workshop Furniture

Technical Parameters


Model Material Suitable Wheel Diameter (mm) Thread Diameter (mm) Screw Height (mm) Installation Height (mm) Load Capacity (kg)
JB-50 SUS 304 50 M10 / M12 50 / 80 / 120 100 200
JB-60 SUS 304 60 M12 / M14 / M16 / M20 80 / 100 / 150 100 250
JB-80 SUS 304 80 M12 / M14 / M16 / M20 80 / 100 / 150 120 300
JB-100 SUS 304 100 M12 / M14 / M16 / M20 80 / 100 / 150 150 500


Stainless Steel Adjustable Feet 0

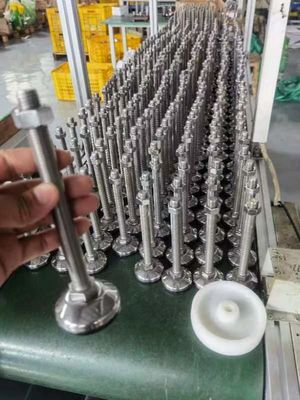

Factory Shows

Stainless Steel Adjustable Feet 1

Stainless Steel Adjustable Feet 2
