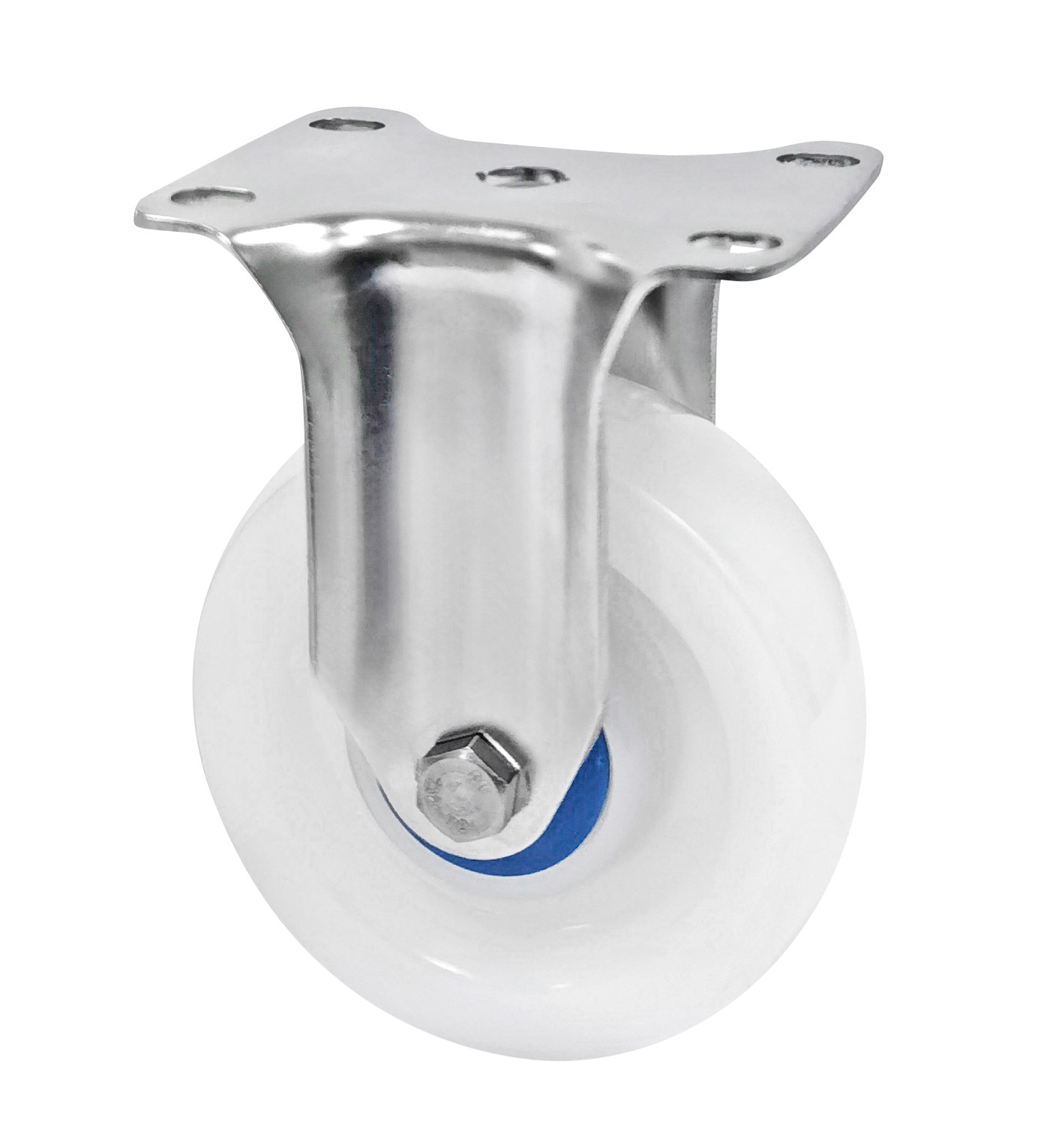

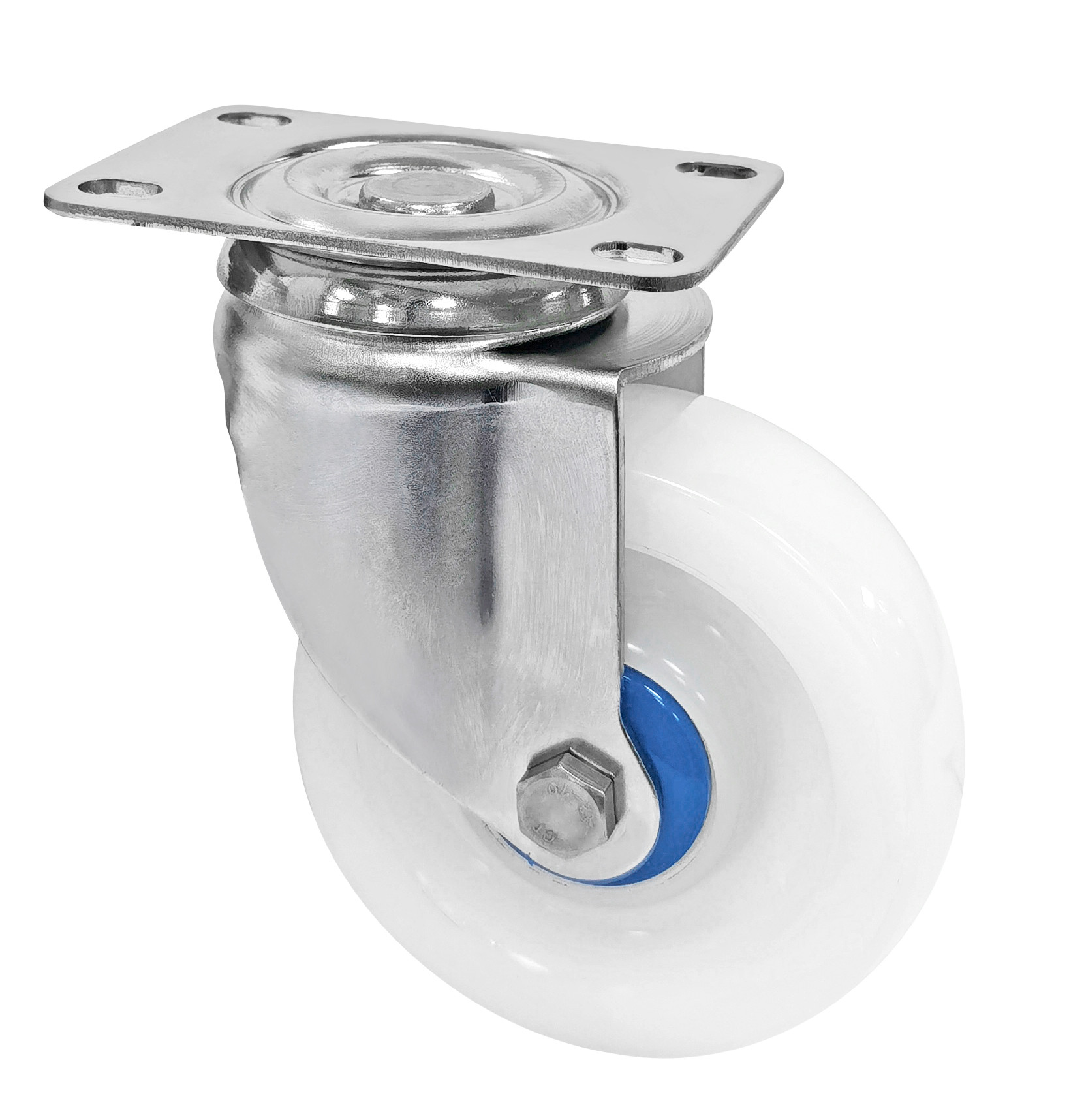

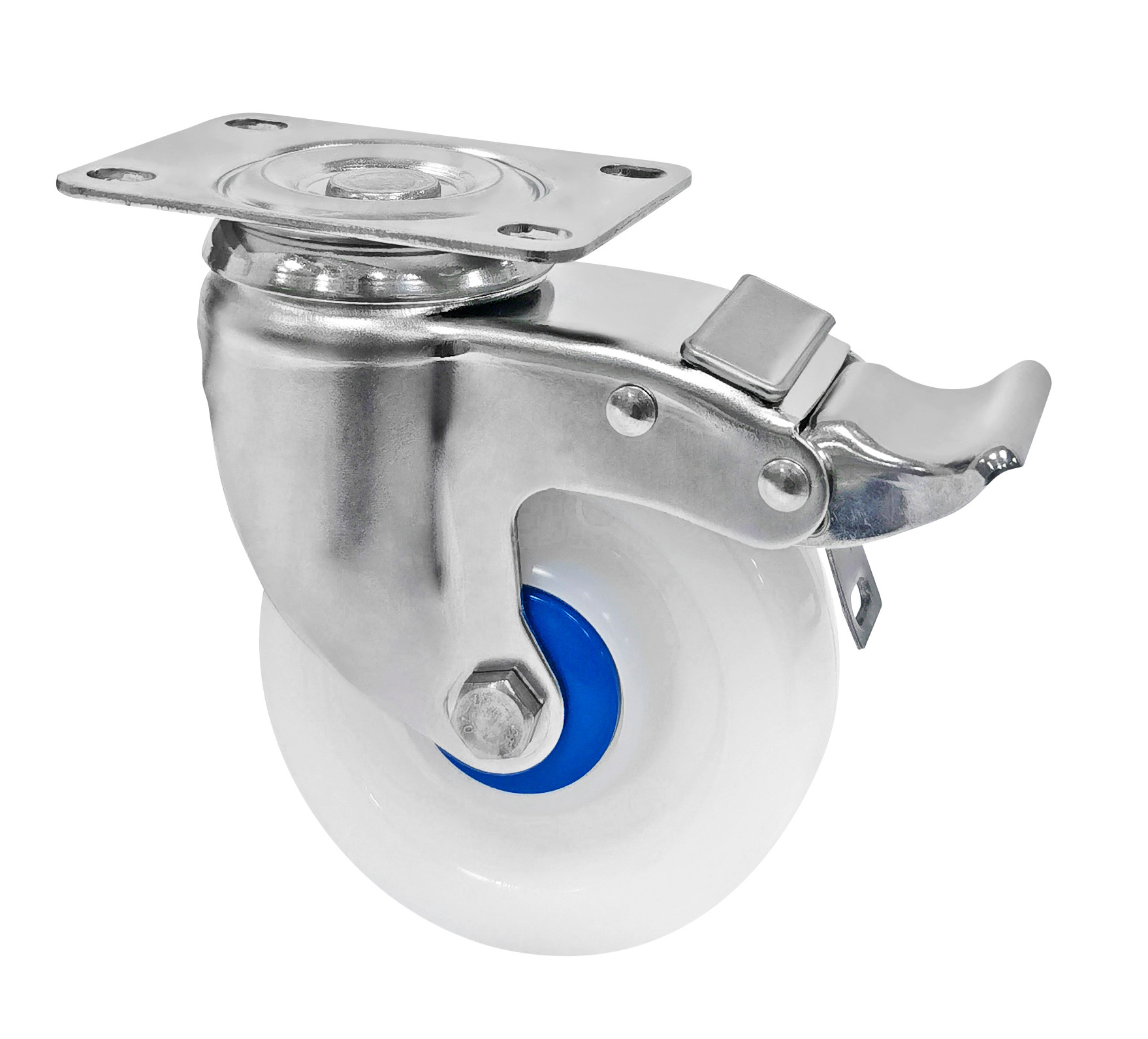

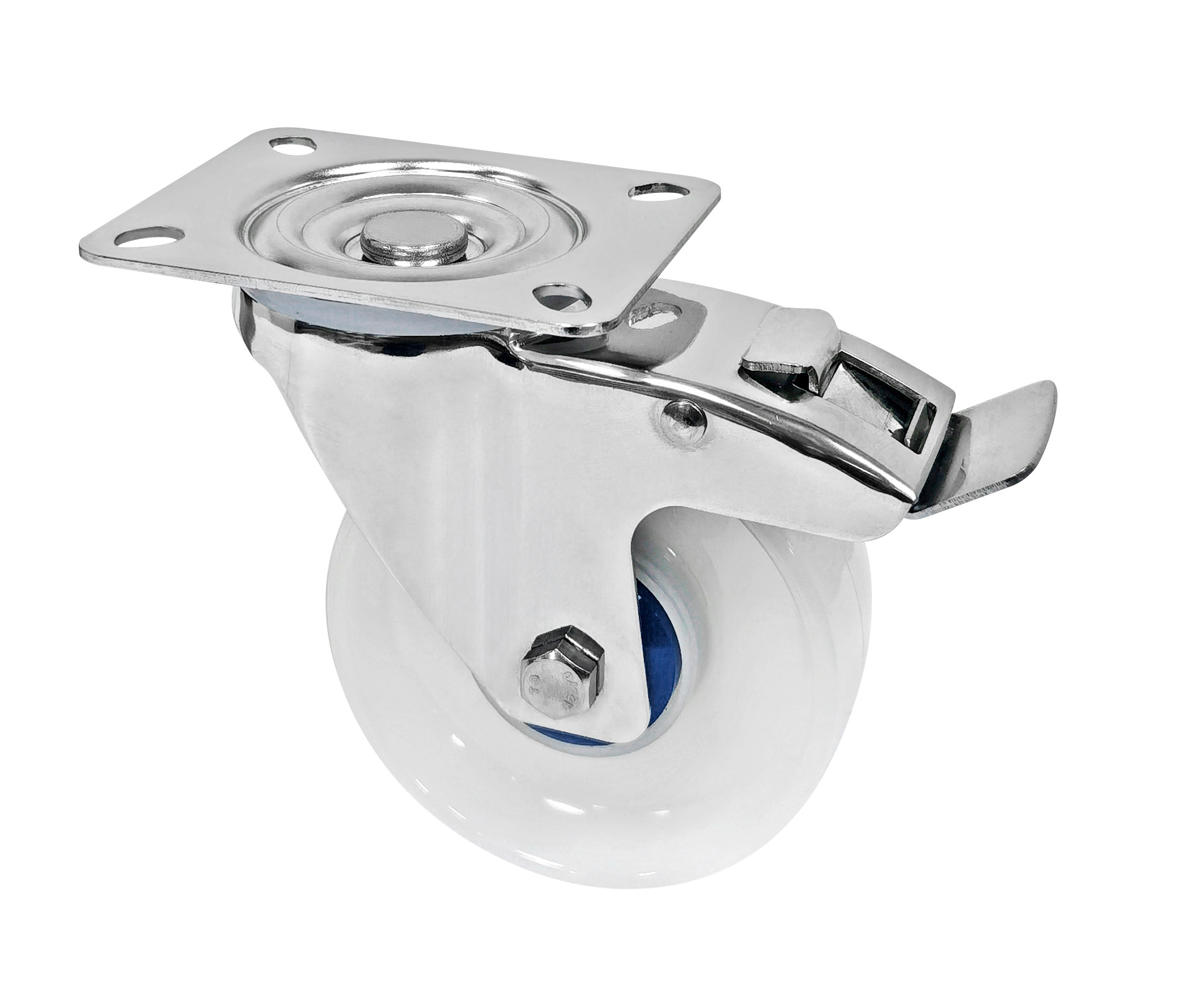

Medium Duty 304 Stainless Steel Casters White PA Casters 150-200KG Load Capacity

500
MOQ
12.4
Price
Medium Duty 304 Stainless Steel Casters White PA Casters 150-200KG Load Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Wheel Diameter: 50 Mm
Tread Width: 32 Mm
Bearing Type: Double Ball Bearing
Plate Size: 65×94 Mm
Hole Spacing: 45×78mm / 45×71mm
Thread Size: M12 × 30 Mm
Load Capacity: 150 Kg Per Caster
Installation: Top-plate Mount
Wheel Material: PA
Highlight:

Medium Duty SS Castor Wheel

,

304 Stainless Steel Casters

,

White PA Casters

Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description
Medium Duty 304 Stainless Steel White PA Casters (150-200KG)

Features



These stainless steel 304 casters feature white polyamide (PA) wheels for high load capacity (150-200kg) and excellent chemical resistance, making them ideal for food service, industrial, and medical applications. The double ball bearing system ensures smooth 360° rotation, while the stainless steel frame provides rust-proof durability in humid or washdown environments. Available in 75mm, 100mm, and 125mm wheel diameters, these casters offer low rolling resistance and easy maneuverability with optimized rotational radius (70-110mm). The 65×94mm mounting plate includes dual hole spacing (45×78mm / 45×71mm) for flexible installation.



Function


✔ Stainless Steel 304 Construction – Resists corrosion, acids, and frequent cleaning
✔ High Load Capacity – Supports 150-200kg per caster
✔ Smooth Rolling – Double ball bearings reduce friction
✔ Hygienic & Easy to Clean – White PA wheels prevent contamination buildup
✔ Low-Noise Operation – Ideal for hospitals, kitchens, and labs


Application


✔ Food Service Equipment – Bakery racks, kitchen carts, food transport trolleys
✔ Hand Trucks & Wheelbarrows – Heavy-duty mobility for logistics
✔ Platform & Stock Carts – Warehouse, retail, and industrial use
✔ Medical & Institutional Carts – Hospital trolleys, cleaning equipment



Technical Parameters



item
value
Model Name
White PA (Polyamide) Stainless Steel Casters
Tread White PA (Polyamide)
Type

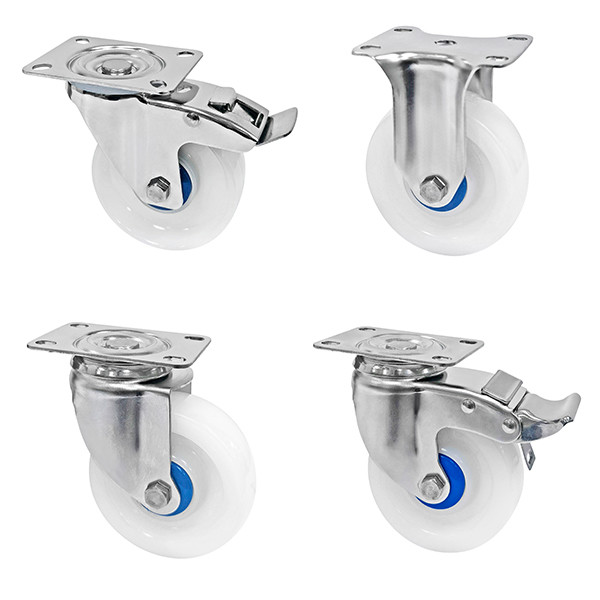

Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style
Rigid, SWIVEL, Swivel & Rigid
Customized support
OEM, ODM, OBM
Place of Origin
China
Wheel Diameter 75/100/125 mm
Wheel Diameter 32 mm
Plate Size 65×94mm mm
Thread Size M12*30 mm
Load Capacity
150/180/200 kg per caster
Hole Size
8.5 mm
