Dajin Medium Duty Stainless Steel Casters Wheels 150kg-200KG Load Capacity

500
MOQ
25
Price
Dajin Medium Duty Stainless Steel Casters Wheels 150kg-200KG Load Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Wheel Diameter: 75/100/125 Mm
Tread Width: 32 Mm
Bearing Type: Double Ball Bearing
Plate Size: 65×94 Mm
Hole Spacing: 45×78mm / 45×71mm
Thread Size: M12 × 30 Mm
Load Capacity: 150/180/200 Kg Per Caster
Installation: Top-plate Mount
Wheel Material: SS304
Rotational Radius: 70/82/95/110 Mm
Installtion Height: 105/130/158 Mm
Highlight:

Medium Duty Castors Stainless Steel

,

Stainless Steel Casters Wheels 200KG

,

Stainless Castor Wheels 150kg

Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description

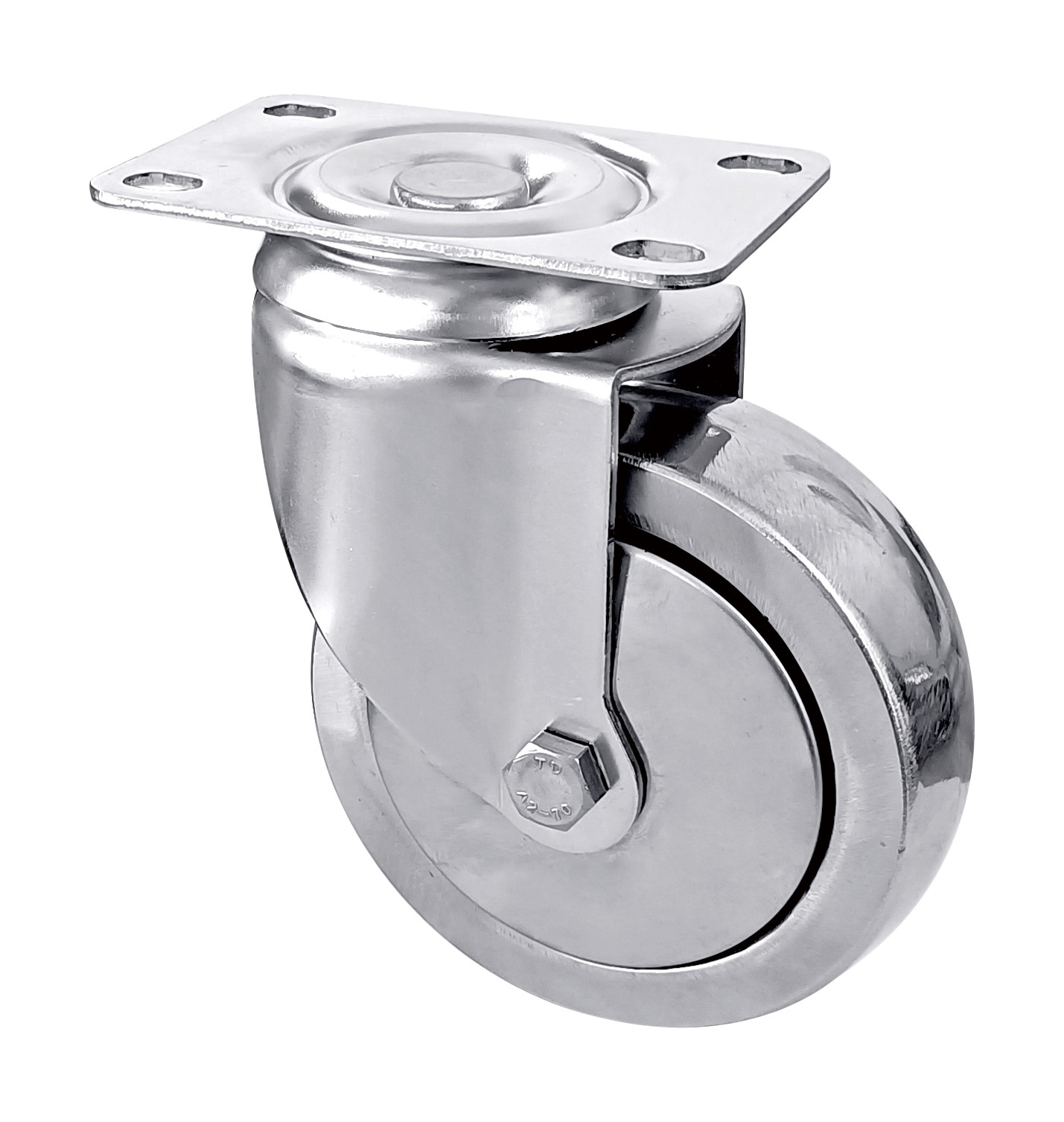

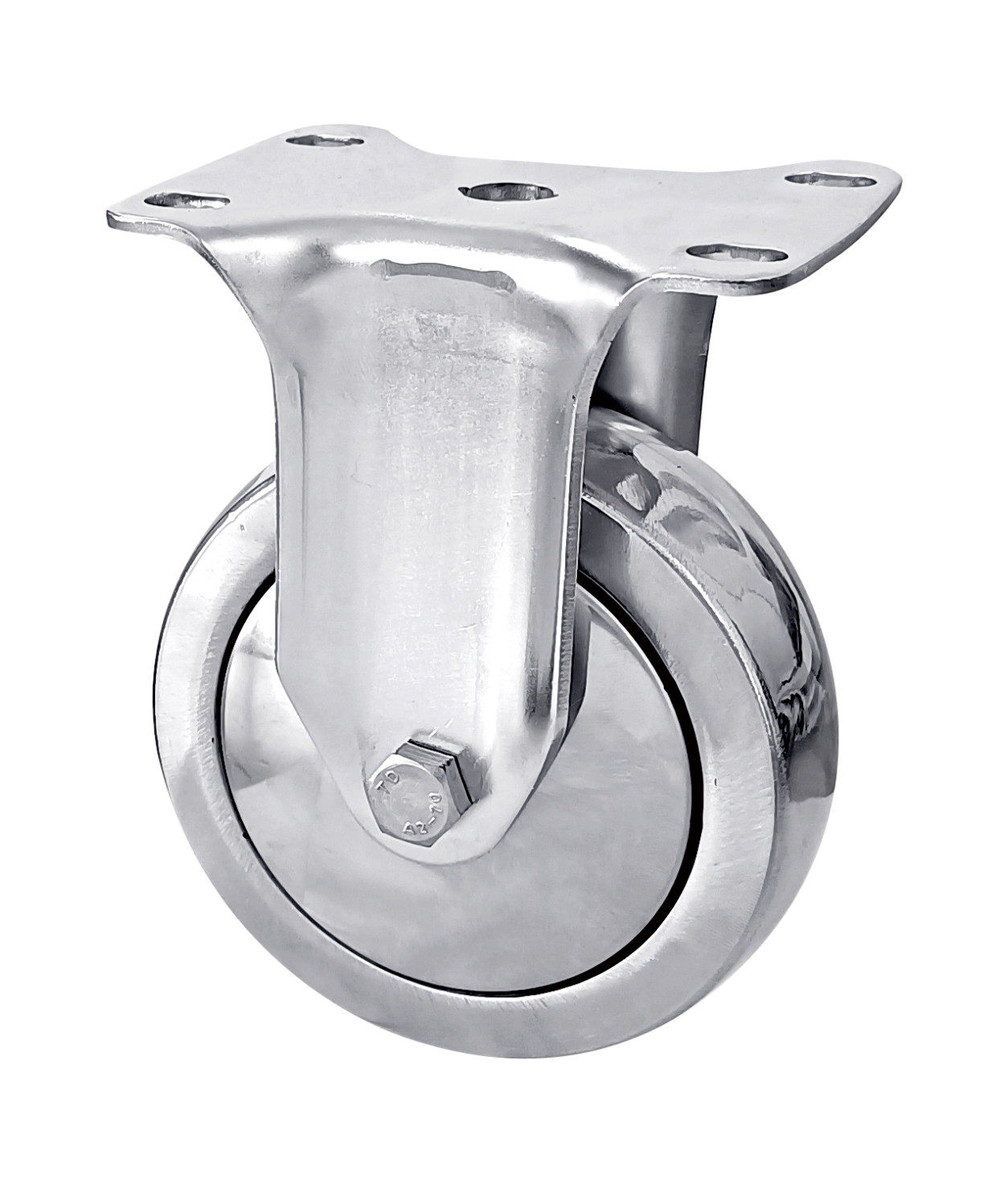

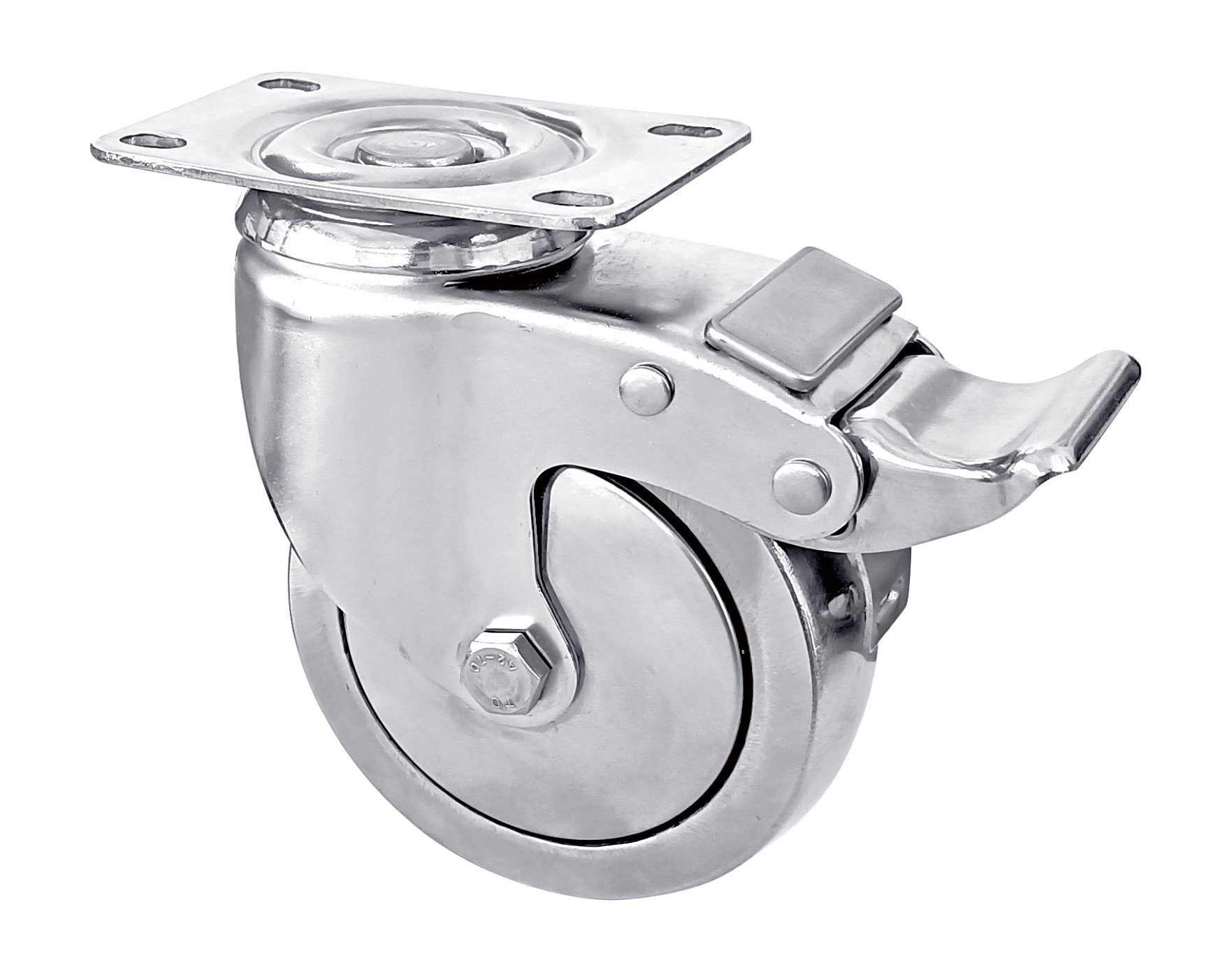

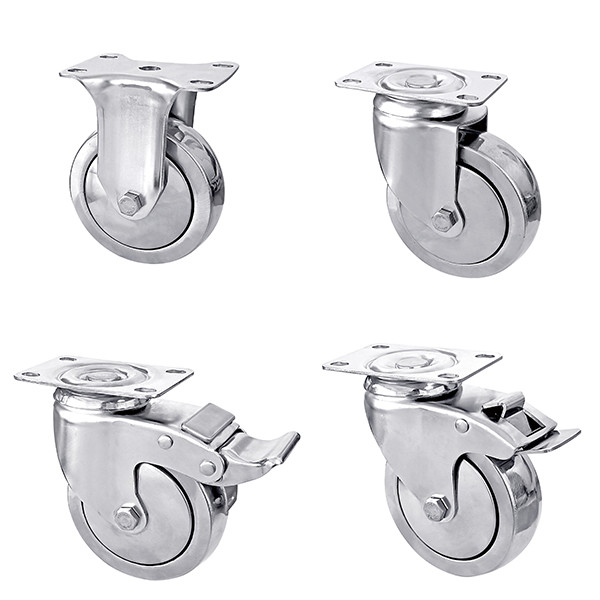

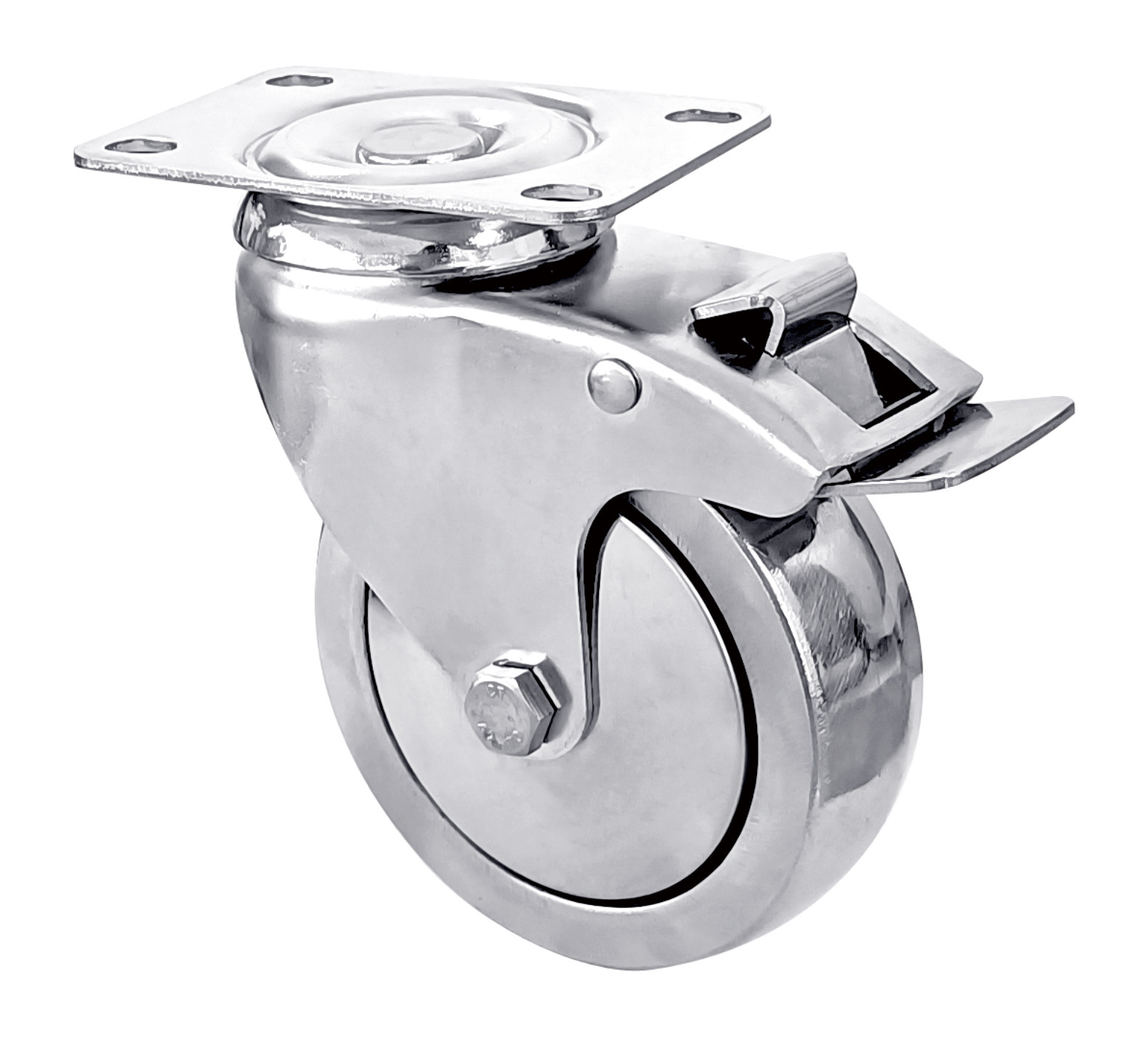

Medium duty 304 stainless steel caster(150-200KG)

Features



1. Stainless Steel Wheel & Frame: Full 304-grade construction for superior rust, corrosion, and chemical resistance.

3. Double Ball Bearing: Ensures smooth rotation and enhanced load capacity compared to single bearings.

4. High Load Capacity: Supports 150kg (75mm) / 180kg (100mm) / 200kg (125mm) per caster.

5. Precision Maneuverability: Low-profile installation heights (105-158mm) and optimized rotational radius (70-110mm) for tight spaces.

6. Durable Wheel Options: Choose from 75mm, 100mm, or 125mm diameters for varying load and speed needs.

7. Easy Installation: Standard 65×94mm plate with dual hole spacing (45×78mm or 45×71mm) and 8.5mm holes for secure mounting.


Function


These medium-duty stainless steel casters provide heavy-duty mobility with low noise and high corrosion resistance, ideal for industrial, medical, and food-grade environments. The double ball bearing ensures long-lasting smooth rolling, while the 304 stainless steel construction guarantees durability in wet or chemically exposed settings.


Application



·Food service equipment
·Handtrucks
·Wheelbarrows
·Platform carts
·Stock carts
·Medical carts & equipment



Technical Parameters



item
value
Model Name
Medium duty 304 stainless steel caster(150-200KG)
Tread SS304
Type
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style
Rigid, SWIVEL, Swivel & Rigid
Customized support
OEM, ODM, OBM
Place of Origin
China
Wheel Diameter 75/100/125 mm
Wheel Diameter 32 mm
Plate Size 65×94 mm
Thread Size M12*30 mm
Load Capacity
150/180/200kg per caster
Hole Size
8.5 mm
