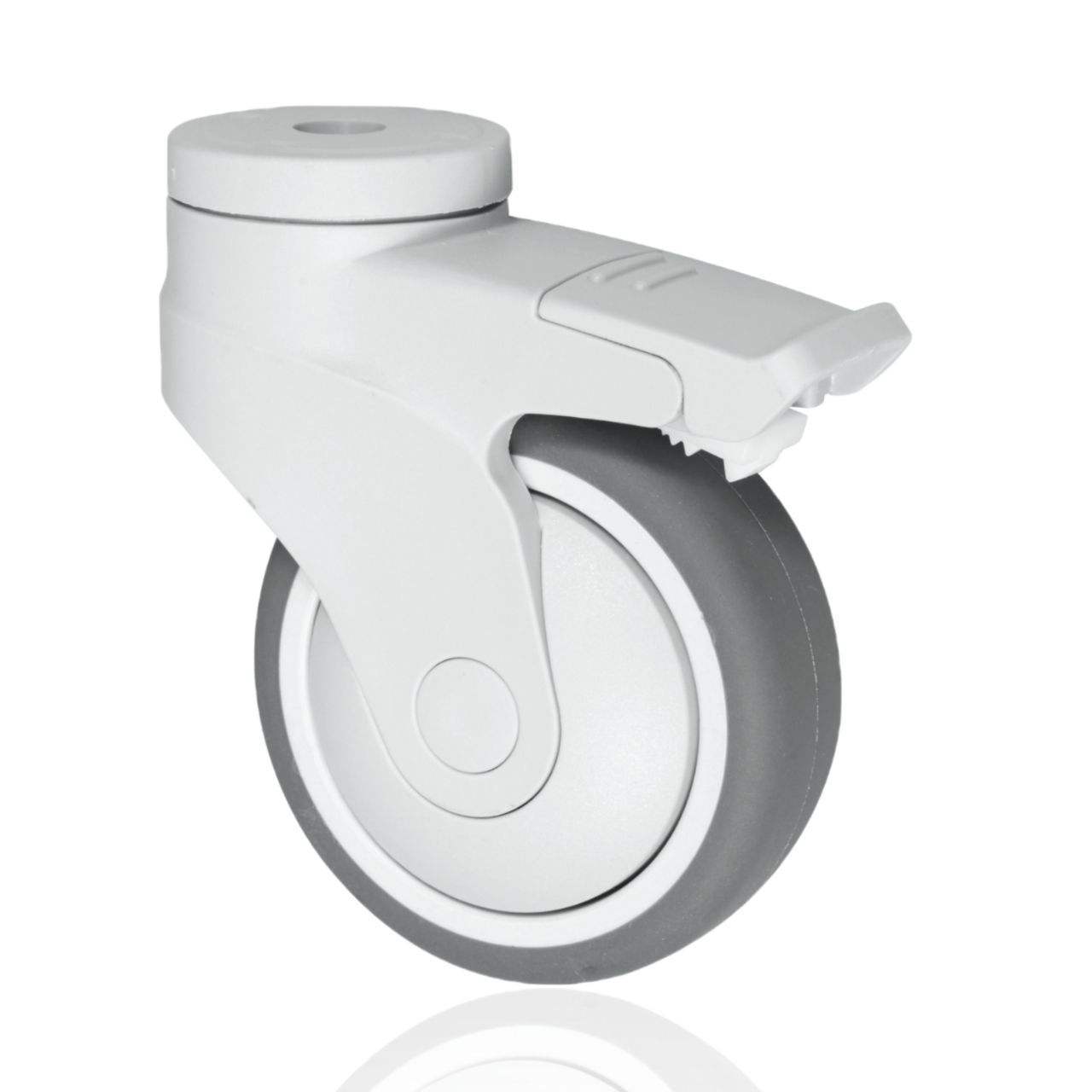

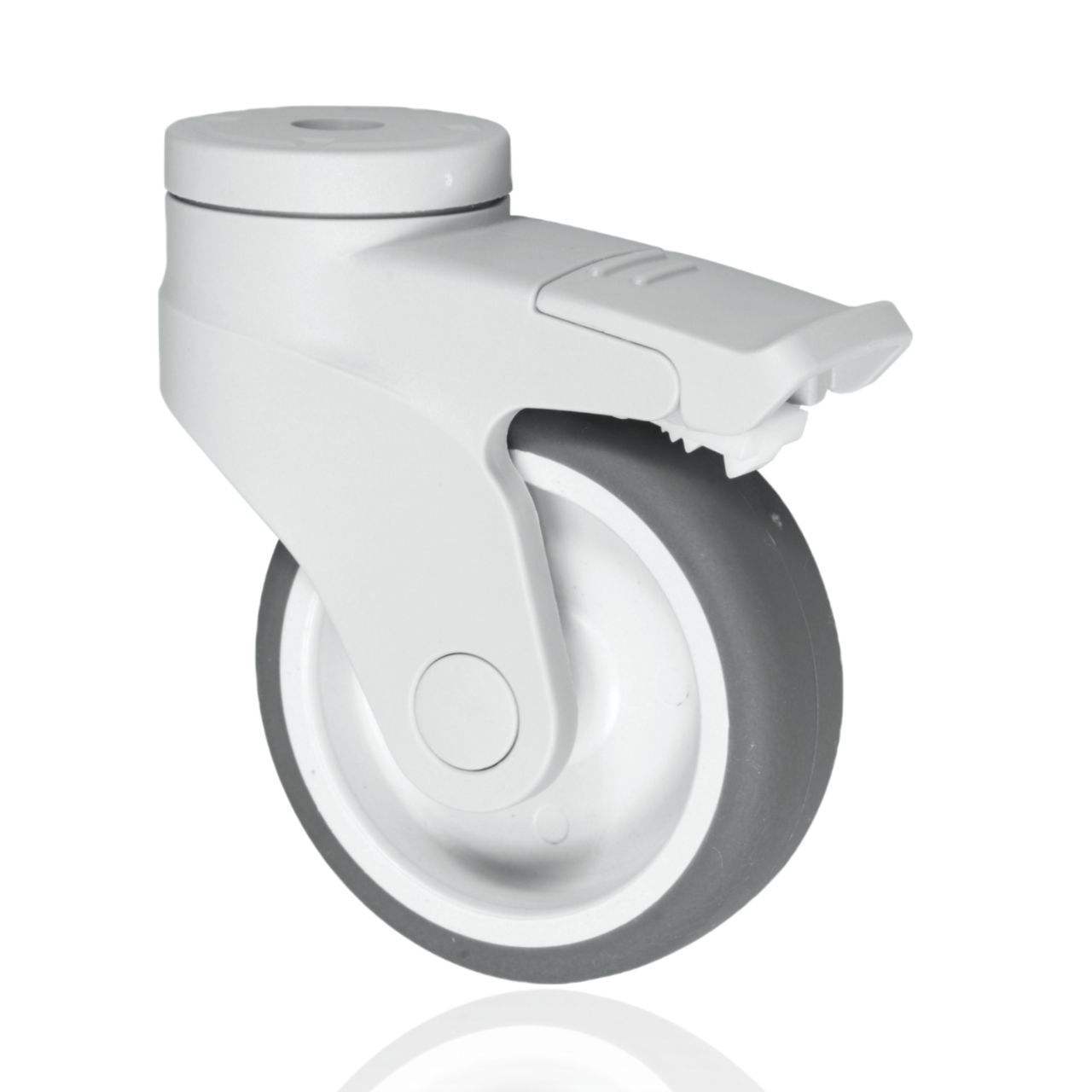

4 Inch (100 mm) Bolt Hole Swivel Caster with Total Lock Brake

This 4 inch (100 mm) bolt hole swivel caster with total lock brake is specially manufactured for medical and hospital applications, providing silent, smooth, and safe mobility for hospital beds, medical trolleys, and equipment. Featuring a soft grey TPR (thermoplastic rubber) tread on a durable PP (polypropylene) core, it ensures excellent floor protection, low noise, shock absorption, and non-marking performance in sensitive healthcare environments. The total lock brake simultaneously locks both swivel and wheel for maximum stability.

• Hospital beds and patient transfer equipment
• Medical trolleys and treatment carts
• Diagnostic and monitoring devices
• Healthcare facility furniture and apparatus
• Clinic and nursing home mobility solutions

This 100mm medical caster combines a soft TPR tread for silent, floor-friendly operation with a robust PP core supporting up to 75kg per wheel. The total lock brake provides superior safety by preventing any movement when engaged, while the bolt hole fitting ensures quick and secure installation. Ideal for environments requiring hygiene, quietness, and reliability, it offers excellent value with shock absorption and durability for daily hospital demands.

Wheel diameter	100 mm
Wheel width	25 mm
Bearing type	Single ball bearing
Centre hole	11 mm
Offset	36 mm
Overall height	128 mm
Load capacity (dynamic)	75 kg
Temperature	-25 /+85°C
