Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster

500
MOQ
4.59
Price
Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Anti Vibration Caster
Base Height (mm): 18 / 22 / 27 / 30
Load Capacity (kg): 500-1000 / 1000-2000 / 2000-3000 / 2500-3500
Pad Height (mm): 5 / 7 / 8 / 10
Screw Length (mm): 100 150 / 120 150 / 120 150 / 120 150 / 150 200
Model: 60 / 75 / 100 / 120
Steel Base Thickness (mm): 10 / 18 / 28 /40
Standard Thread Diameter (mm): M12 / M16 / M20 / M24, M30
Nut Height (mm): 7 / 10.5 / 13 / 14 / 24
Material: Soild Steel Base
Highlight:

Sturdy Industrial Casters

,

Industrial Casters 500kg

,

Adjustable Anti Vibration Caster

Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description

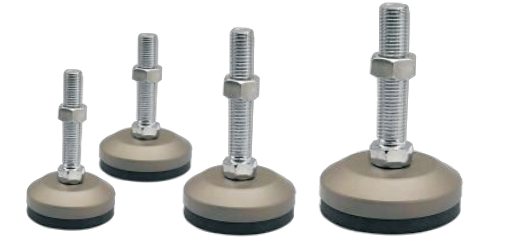

Adjustable Anti-Vibration Casters

Features



The E Series Adjustable Anti-Vibration Casters are crafted for precise equipment positioning and effective shock absorption. With their reinforced solid steel base, enlarged rubber dampers, and protective anti-corrosion coating, these casters guarantee reliable performance and longevity, even when exposed to challenging or moisture-prone environments.



Function

  1. Accurate Height Regulation:
    Fine-tune the elevation of your equipment easily with our precision screw mechanism, ensuring perfect balance on any surface.



  2. Maximum Vibration Damping:
    The oversized, premium-grade rubber pad substantially absorbs shocks and minimizes vibration, safeguarding both your machinery and flooring from damage.



  3. Sturdy Steel Base:
    Constructed from dense solid steel, the base delivers exceptional load-bearing capacity and resists deformation under stress.



  4. Corrosion Protection:
    Each caster is finished with a specialized anti-rust coating, providing strong defense against humidity and corrosive agents.



  5. Hassle-Free Installation:
    Multiple thread sizes and rod lengths are available, making these casters compatible with a broad range of machinery and easy to install or replace.


Application
  • Automated production lines and heavy industrial equipment
  • Testing benches and laboratory workstations
  • Food industry machinery and packaging systems
  • Office desks, retail counters, and shelving units

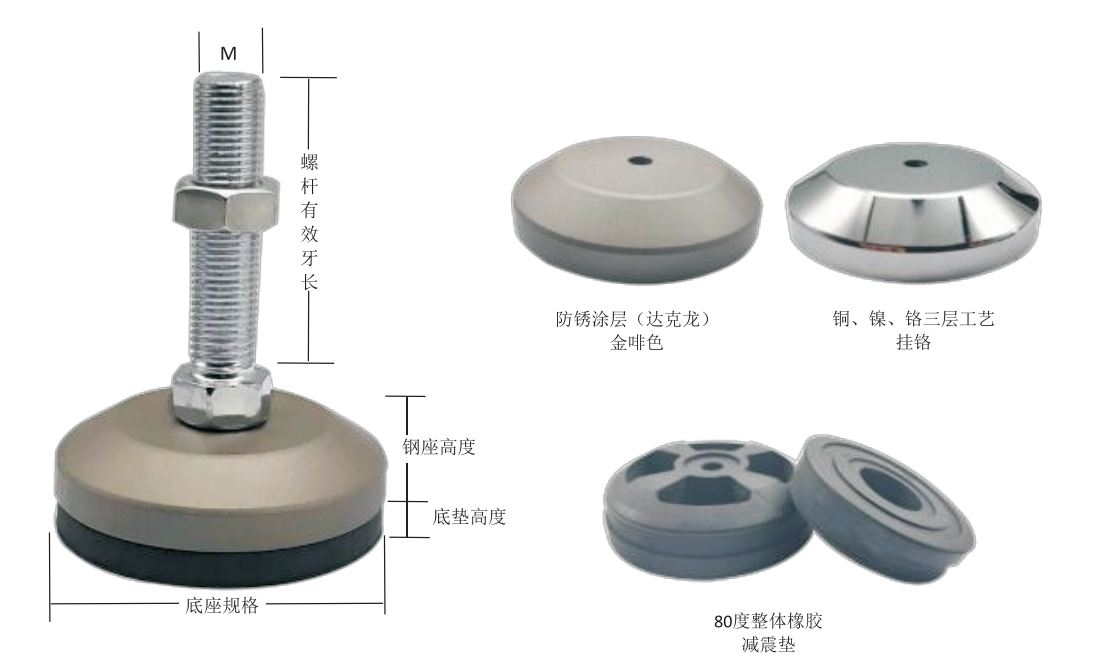

Technical Parameters
Base Model Base Height (mm) Pad Height (mm) Steel Base Thickness (mm) Standard Thread Diameter (mm) Nut Height (mm) Screw Length (mm) Load Capacity (kg)
60 18 5 10 M12 7 100 / 150 500–1000
75 22 7 18 M16 10.5 120 / 150 1000–2000
100 27 8 28 M20 13 120 / 150 2000–3000
120 30 10 40 M24 / M30 14 120/150 2500–3500
          24 150 / 200



Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster 0Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster 1



Factory Shows

Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster 2

Sturdy Industrial Casters 500kg-1000kg 1000kg-2000kg Adjustable Anti Vibration Caster 3
