Name: Industrial Steel Caster Wheels Heavy Duty Polyurethane Casters Shock Absorbing
Brand: Zhongshan Xiaolan Elephant Casters Products Factory
SKU: HTC-001
Price: 4.73 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Industrial Steel Caster Wheels

Wheel Diameter: 100 Mm / 125 Mm / 150 Mm

Tread Width: 37 Mm

Bearing: Double Ball Bearing

Load Height: 139 Mm (100 Mm Wheel) / 170 Mm (125 Mm Wheel) / 193 Mm (150 Mm Wheel)

Swivel Radius: 85 Mm (100 Mm), 98 Mm (125 Mm), 115 Mm (150 Mm)

Load Capacity: 200 Kg / 250 Kg / 300 Kg Per Wheel

Mounting Options: Plate-mount (and Stem Upon Request)

Material: Polyurethane Tread + Polypropylene Core

Finish: Zinc-plated Steel

Highlight:

Heavy Duty Steel Caster Wheels

Industrial Steel Caster Wheels Heavy Duty

Heavy Duty Polyurethane Casters

Basic Infomation

Place of Origin: China

Brand Name: Dajin

Certification: Rosh/CE/IOS

Model Number: HTC-001

Payment & Shipping Terms

Packaging Details: 21X21X21 cm

Delivery Time: 25

Payment Terms: L/C,T/T

Gallery

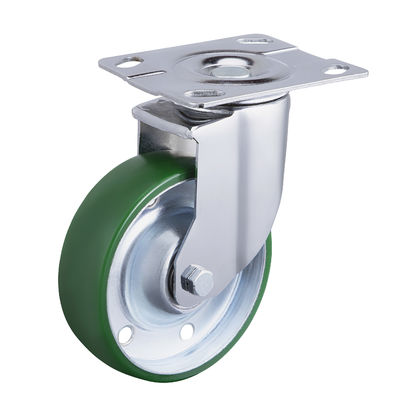

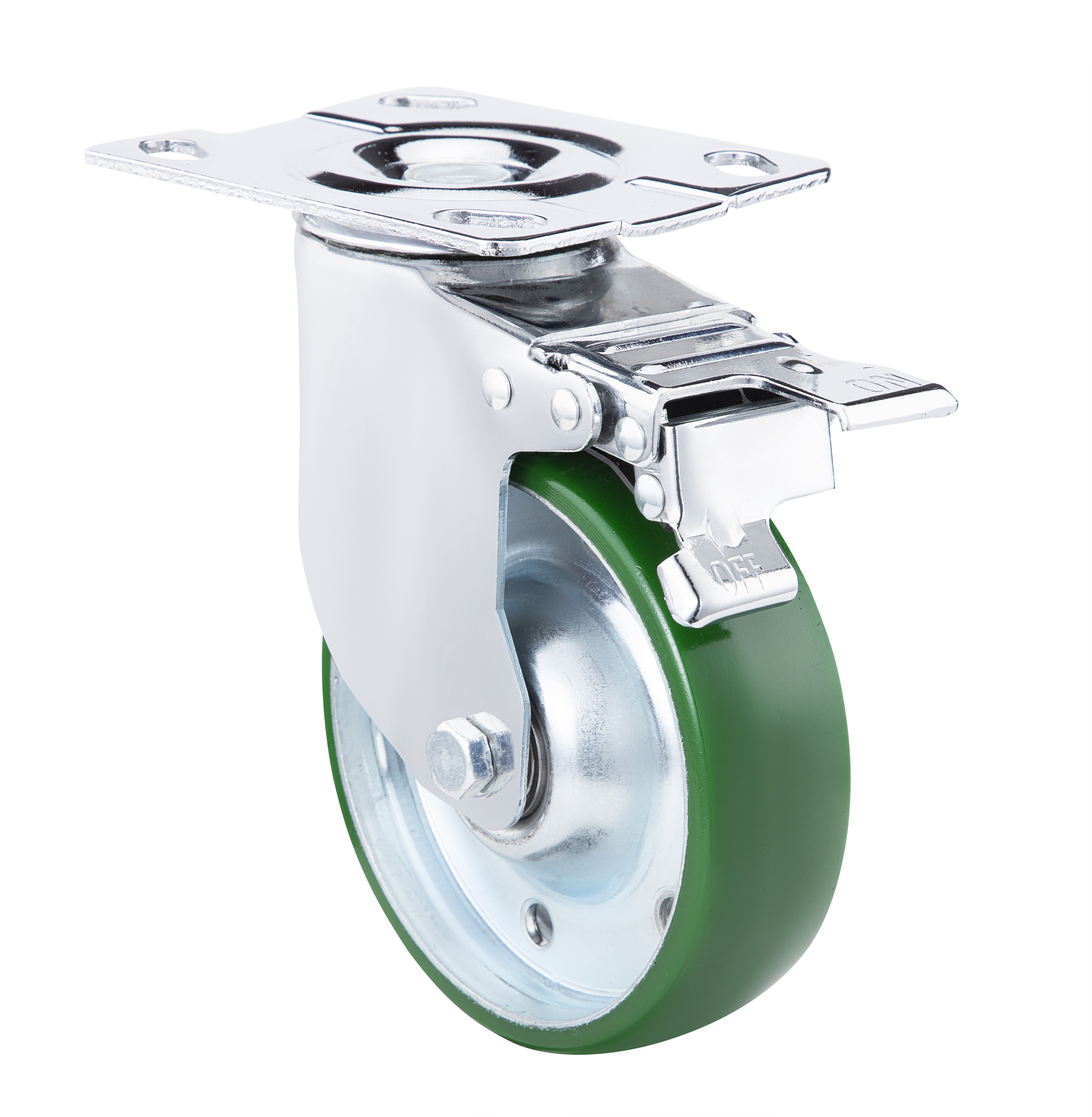

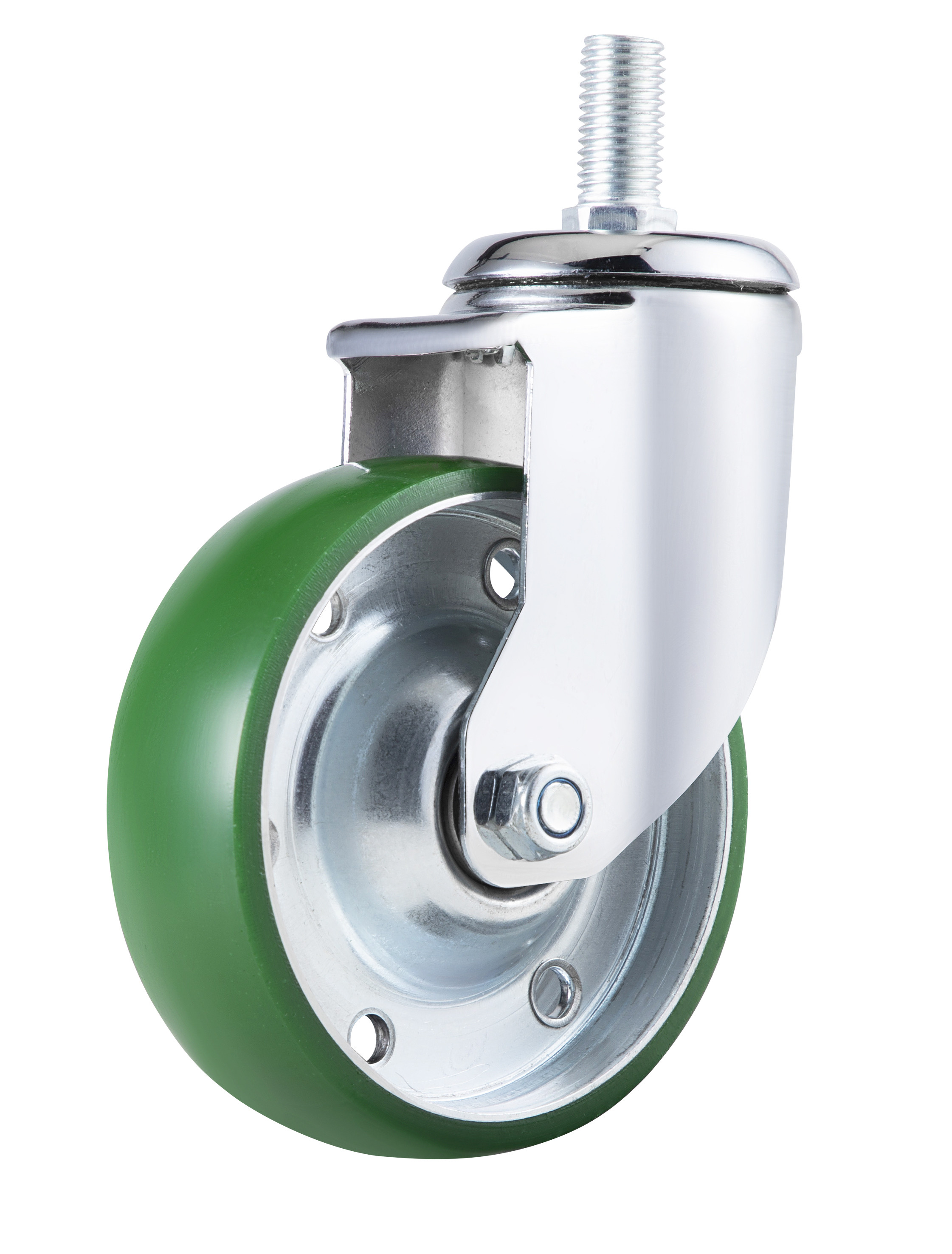

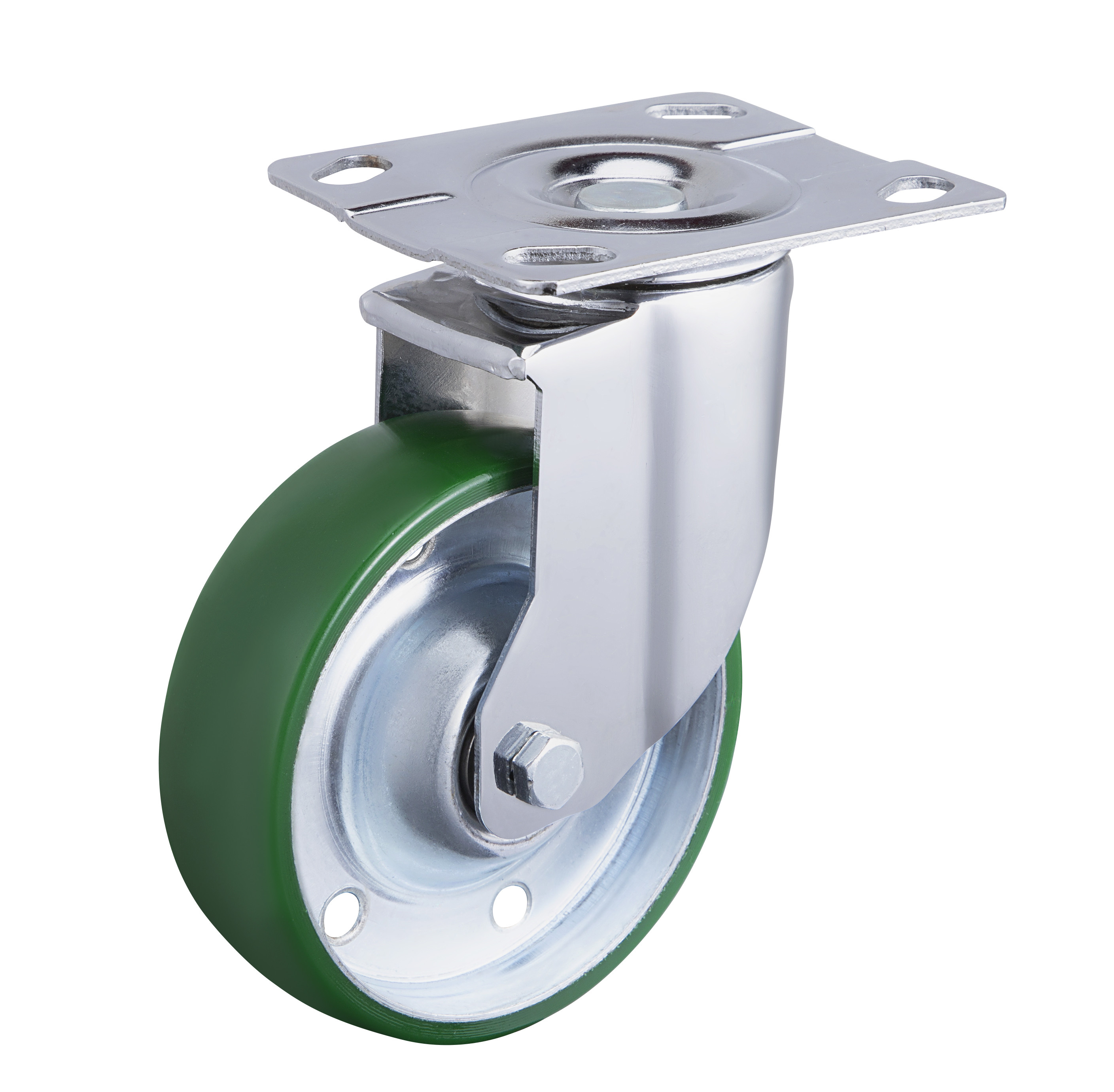

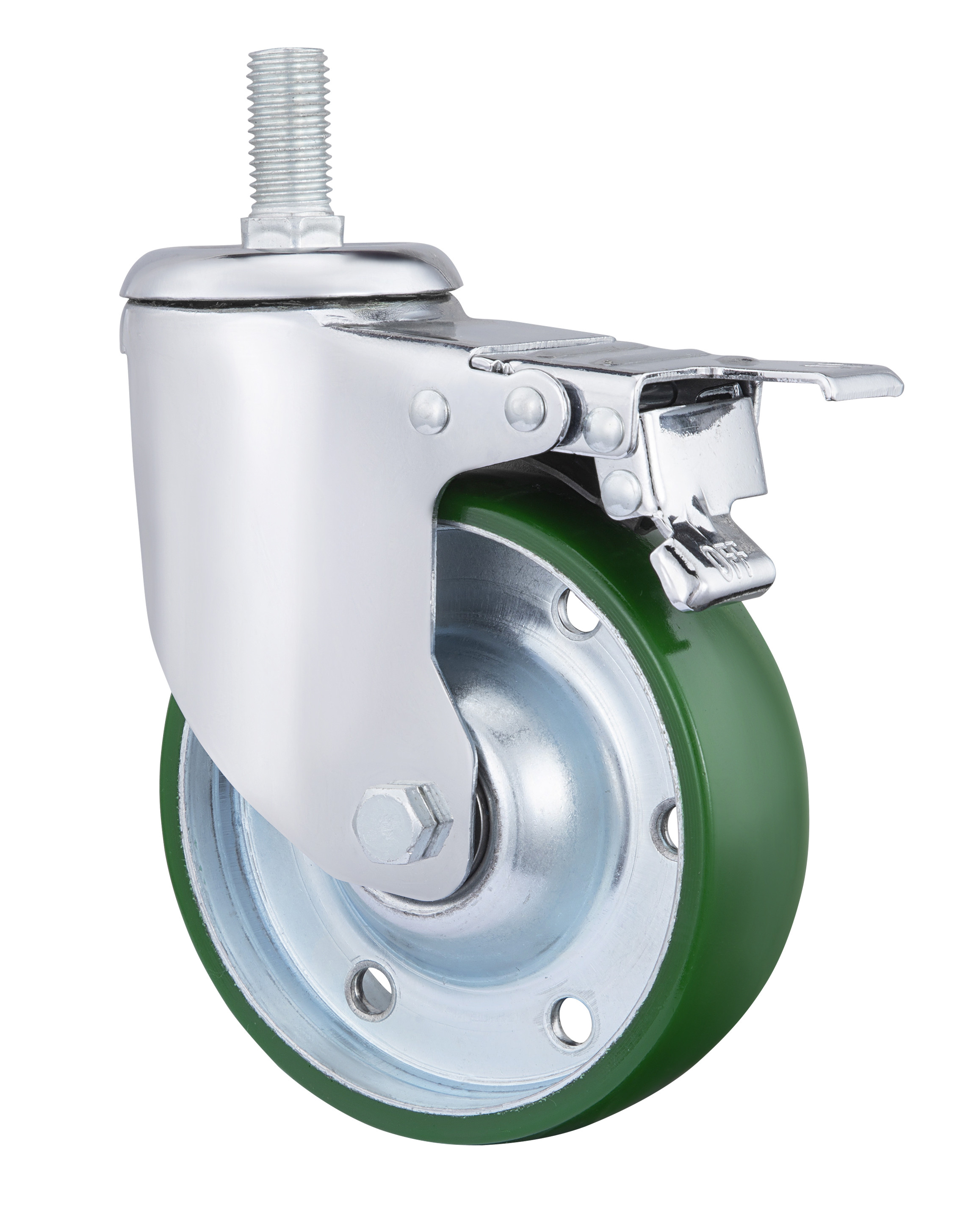

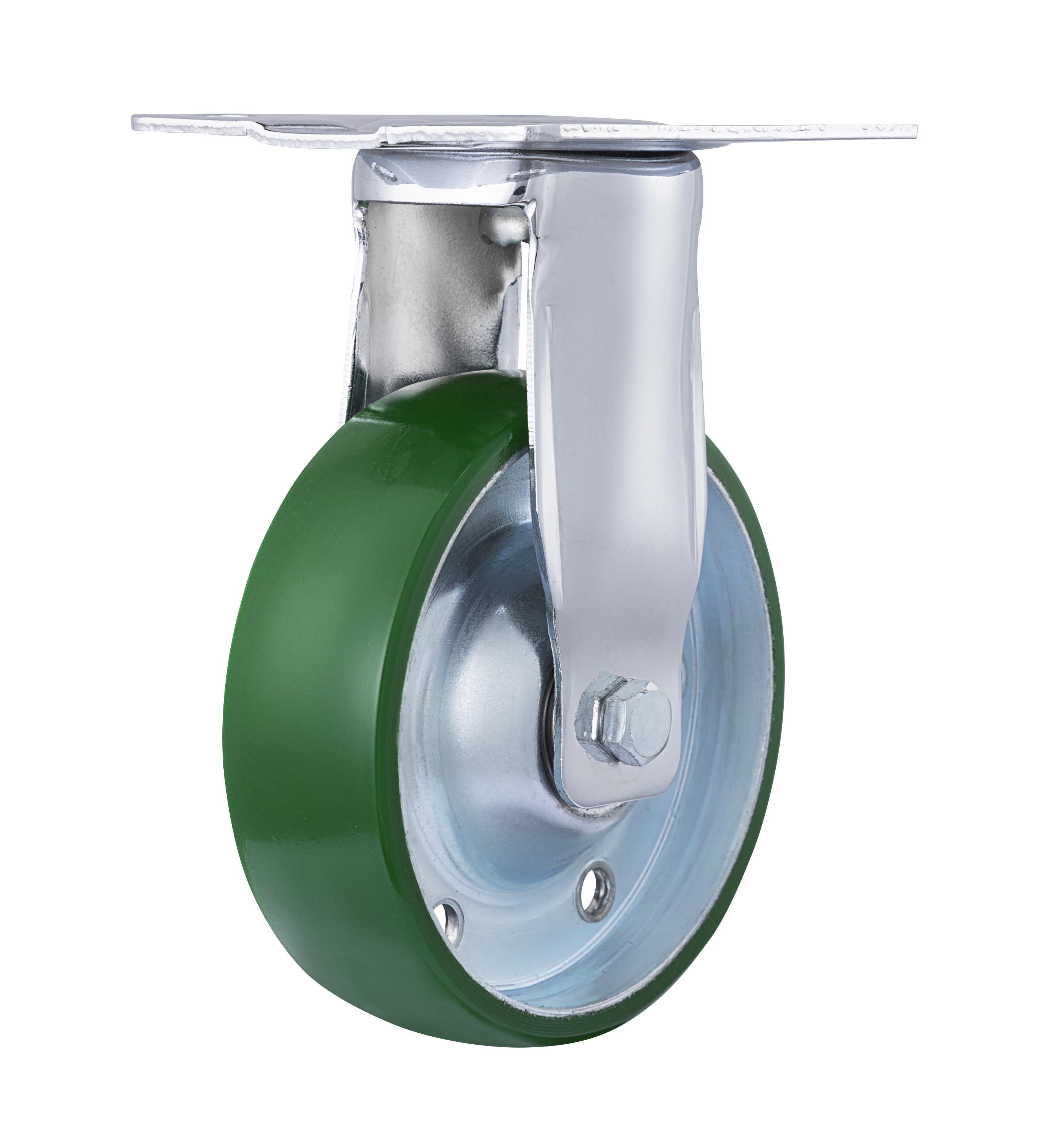

Industrial Steel Caster Wheels Heavy Duty Polyurethane Casters Shock Absorbing

Product Description

Steel Polyurethane Caster Wheel

Features

1. Heavy-Duty Steel Construction: Zinc-plated steel housing and plate resist corrosion and deformation under continuous use.

2. Abrasion-Resistant PU Tread: Thermoplastic polyurethane offers chemical and wear resistance while remaining non-marking.

3. Precision Double-Ball Bearings: Steel bearings minimize friction and ensure smooth 360° swivel even at full load.

4. 37 mm Flat Tread Width: Broad tread distributes weight evenly, reducing floor point loads and improving stability.

5. Shock-Absorbing Design: PU compound cushions impacts and dampens vibration to protect both cargo and flooring.

Function

By converting static machinery and carts into mobile units, these casters enable effortless steering and precise positioning on smooth or mildly irregular surfaces. The integrated swivel mechanism, combined with the heavy-gauge steel yoke and double-ball bearings, provides low-effort maneuverability under loads up to 300 kg per wheel. Their non-marking tread preserves floor finishes, making them ideal for workshops, production lines, and logistics centers.

Application

1. Plant Workshops & Large-Machine Bases: Facilitate repositioning of presses, conveyors, and heavy fixtures.

2. Warehouse Logistics Carts: Support pallet trucks, platform trolleys, and order-picking carts with minimal push/pull effort.

3. Material-Handling Equipment: Ideal for maintenance trolleys, tool carts, and assembly-line skids.

Technical Parameters

item	value
Model Name	PU Industrial Caster Wheel
Tread	Polyurethane
Center	Steel
Type	Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style	Rigid, SWIVEL, Swivel & Rigid
Customized support	OEM, ODM, OBM
Place of Origin	China
Wheel Diameter	100 mm / 125 mm / 150 mm
Bearing	double-ball bearing
Thread Size	M12 × 30 mm
Load Capacity	200 kg / 250 kg / 300 kg per wheel
Load Height	139 mm (100 mm wheel) / 170 mm (125 mm wheel) / 193 mm (150 mm wheel)
