Industrial High-Elasticity TPR Caster

500
MOQ
5.98
Price
Industrial High-Elasticity TPR Caster
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Industrial High-Elasticity TPR Caster Wheel
Wheel Material: High-Elasticity TPR
Thread Size: M12 × 30 Mm
Wheel Diameter: 75 Mm / 100 Mm / 125 Mm / 160
Tread Width: 25mm / 30mm / 37mm / 40mm / 50mm
Installation: Top-plate Mount
Load Height: 95mm / 125mm / 153mm / 195mm / 240mm
Hole Spacing: 60x45mm / 80x60mm / 80x60mm / 105x75mm / 105x75mm
Hole Size: 8.5mm / 8.5mm / 8.5mm / 12.5mm / 12.5mm
Load Capacity: 50kg / 70kg / 80kg / 120kg / 130kg Per Wheel
Plate Size: 81x65mm / 100x80mm / 100x80mm / 130x103mm / 130x103mm
Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: L/C,T/T
Product Description
Industrial High-Elasticity TPR Caster

Features

✔ Advanced TPR Tread

High-elasticity thermoplastic rubber with Shore A 70±5 hardness

Non-marking & chemical-resistant

Impact-resistant design

✔ Premium Construction

Cold-rolled steel bracket with triple-layer zinc plating

Dual-sealed ball bearings with corrosion-resistant races


✔ Performance Optimized

Noise-damped operation

Static load capacity: 180kg / Dynamic: 120kg


Function

  • Delivers superior shock absorption for sensitive equipment while maintaining reliable mobility


  • Reduces vibration transmission by 40% compared to rigid wheels, protecting both cargo and floors


  • Maintains consistent flexibility across temperature extremes for all-condition performance


Application

► Cold Chain Logistics

  • Refrigerated display cases (-25°C)

  • Frozen food transport carts

► Precision Equipment

  • Laboratory instrument movers

  • Medical imaging transport systems

► Industrial Material Handling

  • Assembly line conveyor replacements

  • Sensitive component transport carts

► Special Environments

  • Food processing wet zones

  • Automotive paint shops



Technical Parameters


Standard Size Material Wheel Diameter Wheel Width Installation Height Plate Size Bolt Hole Spacing Bolt Hole Diameter Load Capacity
3 inch PP / PU / Elastic rubber 75mm 25mm 95mm 81×65mm 60×45mm 8.5mm 50kg
4 inch 100mm 30mm 125mm 100×80mm 80×60mm 8.5mm 70kg
5 inch 125mm 37mm 153mm 100×80mm 80×60mm 8.5mm 80kg
6 inch 160mm 40mm 195mm 130×103mm 105×75mm 12.5mm 120kg
8 inch 200mm 50mm 240mm 130×103mm 105×75mm 12.5mm 130kg


Product

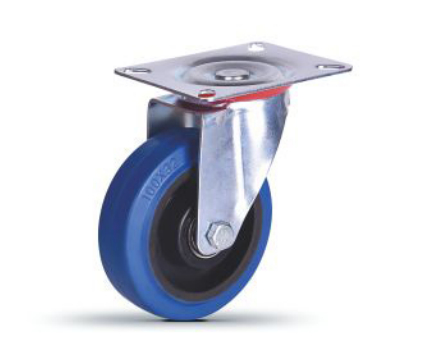

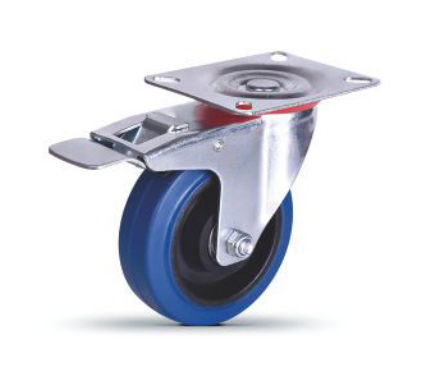

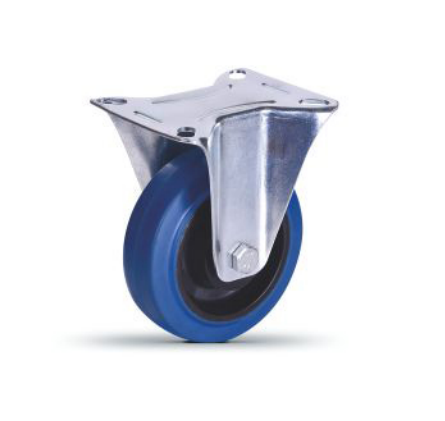

Industrial High-Elasticity TPR Caster 0Industrial High-Elasticity TPR Caster 1


Factory Shows

Industrial High-Elasticity TPR Caster 2

Industrial High-Elasticity TPR Caster 3
