Name: 3/4/5 Inch Thread Stem PP Casters
Brand: Zhongshan Xiaolan Elephant Casters Products Factory
SKU: FID-001
Price: 1.64 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 3/4/5 Inch Thread Stem PP Casters

Type: Plate Caster (brake & Swivel & Rigid)

Wheel Diameter: 75/100/125 Mm

Tread Width: 27 Mm

Wheel Material: Polypropylence

Bearing: Single Ball Bearing / No Bearing

Load Capacity: 70/90/130 Kg Per Wheel

Finish: Galvanized

Mounting Plate: Standard Swivel Plate

Plate Thickness: 2.5mm

OEM/ODM Support: Yes

Usage: Furniture, Carts, Trolleys

Basic Infomation

Place of Origin: China

Brand Name: Dajin

Certification: Rosh/CE/ISO

Model Number: FID-001

Payment & Shipping Terms

Packaging Details: 14X14X8 cm

Delivery Time: 25

Payment Terms: L/C,T/T

Gallery

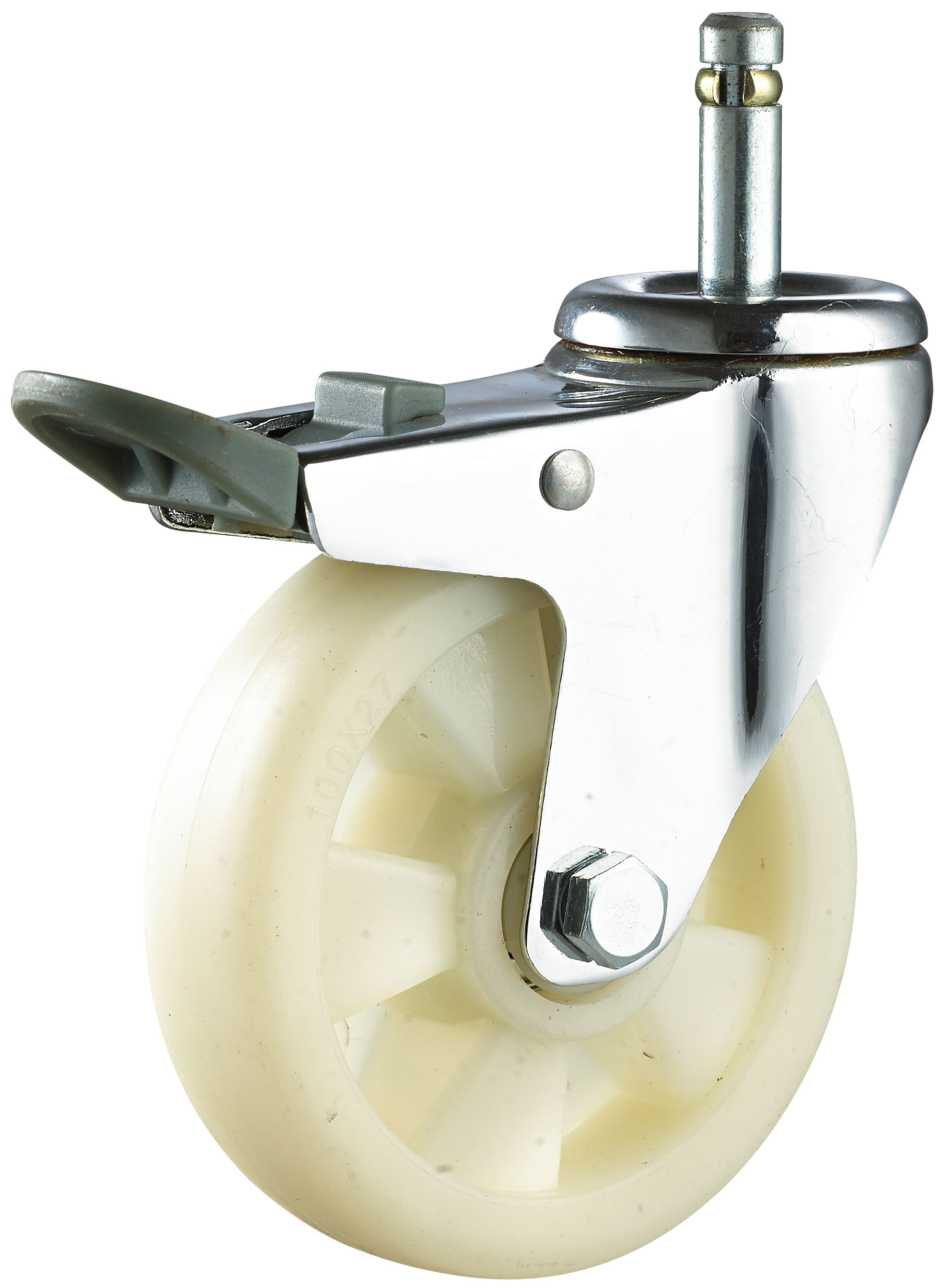

3/4/5 Inch Thread Stem PP Casters

Product Description

3/4/5 Inch Thread Stem PP Casters

Features

Precision Threaded Stem: M10×1.5mm fine pitch thread for micron-level height adjustment (±0.1mm)
Engineering-Grade PP Wheel: 50mm diameter with UV stabilizers (tested to 500hr QUV weathering)
Dual-Bearing Swivel: Chrome steel balls (ABEC-3 grade) for smooth 360° rotation
Compact Design: 65mm total height - ideal for low-clearance equipment

Function

Micro-Adjustment: 20mm vertical travel range with locking nut for vibration-sensitive instruments
Multi-Angle Load Distribution: 15° self-aligning base compensates for uneven surfaces
Tool-Free Operation: Knurled adjustment knob allows finger-tight positioning

Application

Laboratory Equipment: Microscope stations, analytical balance tables
Electronics: PCB assembly benches, optical inspection stations
Cleanrooms: ISO Class 5 compliant with ESD-safe variants available

Technical Parameters

Wheel Dia (mm/inch)	Tread Width (mm)	Bearing	Load Height (mm)	Swivel Radius (mm)	Plate Size (mm)	Hole Size (mm)	Hole Spacing (mm)	Thread Size (mm)	Stem Size (mm)
75 / 3"	27	No Bearing/Single Ball Bearing	105	69 / 99	92 × 65	76.5 × 44.5 / 70.5 × 44.5	8.5	M12 × 30	⌀12 × 60
100 / 4"	27	No Bearing/Single Ball Bearing	127	85 / 109	92 × 65	76.5 × 44.5 / 70.5 × 44.5	8.5	M12 × 30	⌀12 × 60
125 / 5"	27	No Bearing/Single Ball Bearing	154	105 / 120	92 × 65	76.5 × 44.5 / 70.5 × 44.5	8.5	M12 × 30	⌀12 × 60

Contact Person :	Yan
Tel :	+8613822773800
