Name: Heavy-Duty Adjustable Leveling Casters With TPR Wheels & Precision Bearings
Brand: Zhongshan Xiaolan Elephant Casters Products Factory
SKU: HTC-001
Price: 4.21 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: GD40/60/80/100 Caster Wheel

Material: PA6 (core), TPR (tread), Metal (housing)

Tread Width: 19/24/30/32mm

Wheel Diamete: 40/50/62/70mm

Plate Size: 73*73 Inches

Plate Hole Spacing: 58 × 58 Mm

Temperature Range: –25 °C To +85 °C (typical For PA6/TPR)

Finish: Stainless Steel

Height: 86mm

Application: Food & Beverage, Retail, Restaurants, Machinery

Highlight:

TPR Wheels Heavy Duty Leveling Casters

Precision Bearings Heavy Duty Leveling Casters

Basic Infomation

Place of Origin: China

Brand Name: Dajin

Certification: Rosh/CE/IOS

Model Number: HTC-001

Payment & Shipping Terms

Packaging Details: 21X21X21 cm

Delivery Time: 25

Payment Terms: L/C,T/T

Gallery

Heavy-Duty Adjustable Leveling Casters With TPR Wheels & Precision Bearings

Product Description

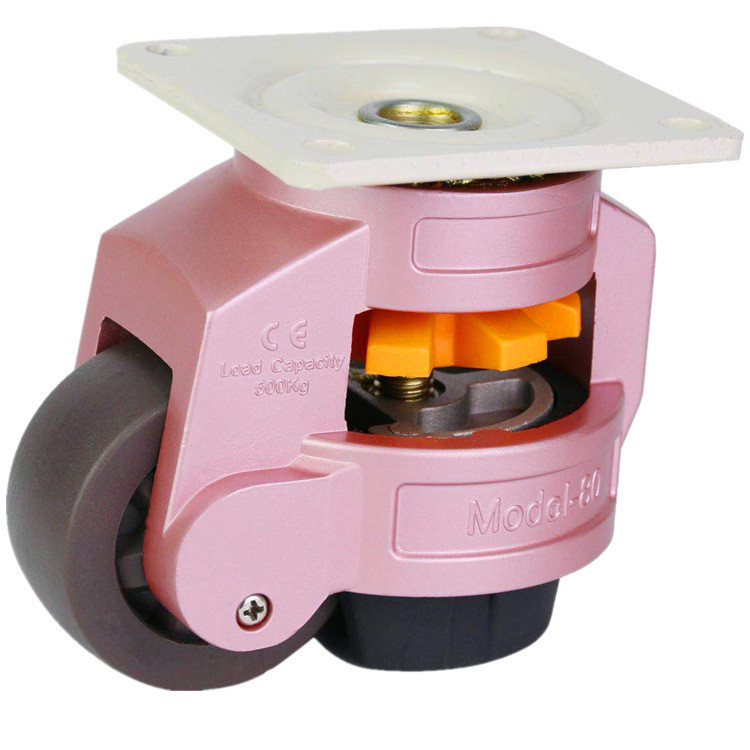

Heavy-Duty Adjustable Leveling Casters with TPR Wheels & Precision Bearings

Features

The GD60F leveling caster combines a high-strength PA6 nylon core with a wear-resistant TPR tread, delivering superior durability and chemical resistance for demanding industrial environments. Its precision-engineered aluminum alloy or steel housing integrates double-sealed ball bearings, ensuring smooth 360° rotation and extended service life under loads up to 250 kg. The built-in tool-free height adjustment mechanism (±10 mm) enables quick leveling on uneven surfaces, while the non-marking TPR tread protects floors and reduces noise.

Function

Designed for heavy-duty mobility and stability, the GD60F transforms stationary equipment into adjustable, mobile platforms. Simply rotate the ergonomic adjustment knob to fine-tune the height (±10 mm), then lock it in place for vibration-damped support. The TPR/PA6 wheel construction absorbs shocks and maintains structural integrity, even under dynamic loads, while the double-bearing swivel system ensures effortless maneuverability.

Application

Food & Beverage Industry – Mobile workstations, processing equipment, and hygienic trolleys
Hospitality & Retail – Display racks, service carts, and shelving units requiring quiet mobility
Industrial Machinery – Conveyor stands, assembly jigs, and tooling fixtures needing precise leveling
Manufacturing & Warehousing – Heavy equipment movers with vibration-resistant support

Technical Parameters

Item	Wheel Diameter (mm)	Tread Width (mm)	Load Height (mm)	Adjustable Height (mm)	Plate Size (mm)	Hole Spacing (mm)	Load Capacity for 1pc (kgs)	Load Capacity for 4pc (kgs)
GD40A	40	19.2	75	8	55×55×3	42×42 (Φ7)	50	100
GD60A	50	24	85	10	73×73×5	58×58 (Φ7)	250	500
GD80A	62	30.7	110	12	90×90×5	70×70 (Φ9)	500	1000
GD100A	75	32	120	12	95×95×5	70×70 (Φ11)	750	1500

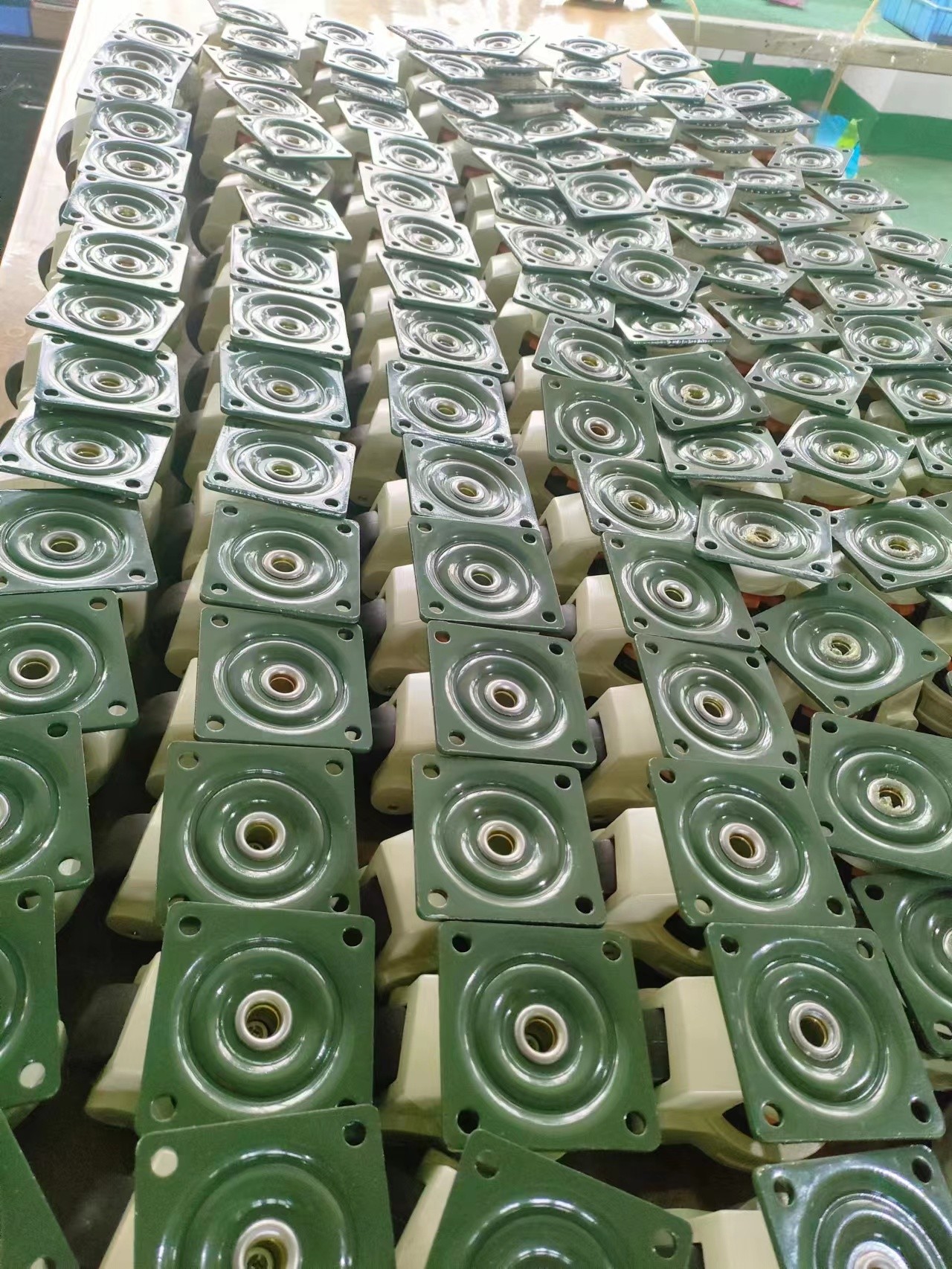

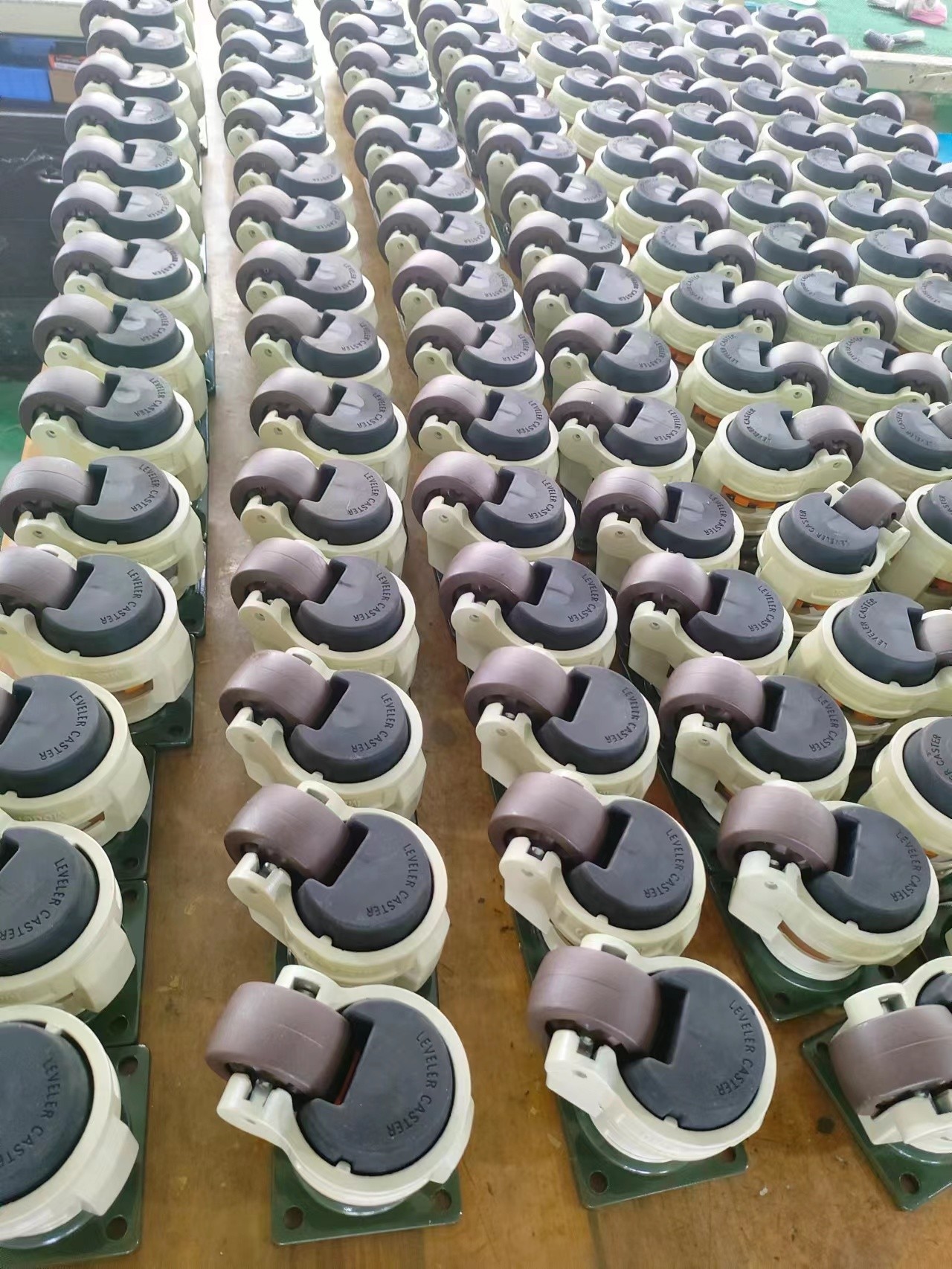

Factory Shows

Heavy-Duty Adjustable Leveling Casters With TPR Wheels & Precision Bearings 0

Heavy-Duty Adjustable Leveling Casters With TPR Wheels & Precision Bearings 1
